Details
Overview
- Pressure: 40 to 125 PSI
- Seal Materials: Buna-N & Viton« (other seals available)
- Liquid delivery per cycle: 0 to .012 cu. in, adjustable
- Temperature range: -15¦ F 180¦ F
- Piston ratio: 9:1
- Piston dia. & stroke: .250 dia. by .250 stroke (inches)
- Reservoir capacity: 1/2 gallon (other capacities available)
- Voltage requirement: 120V/60Hz (other voltages available)

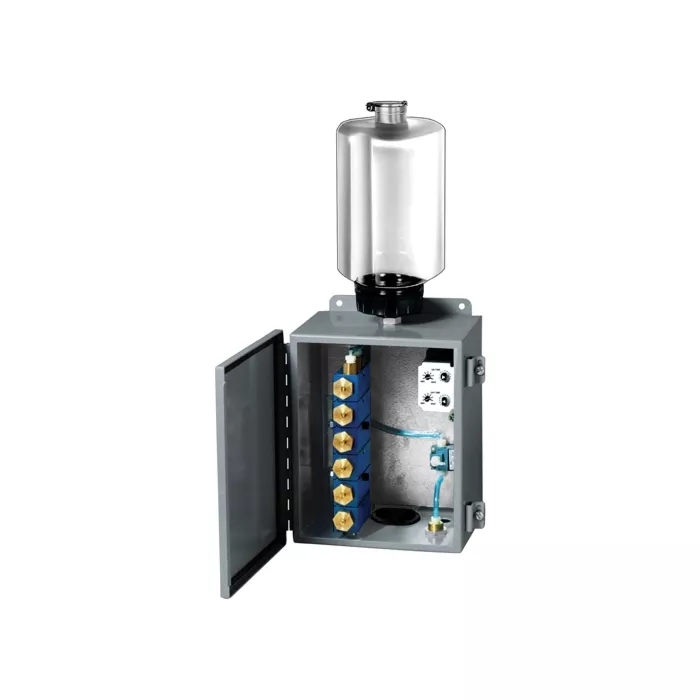

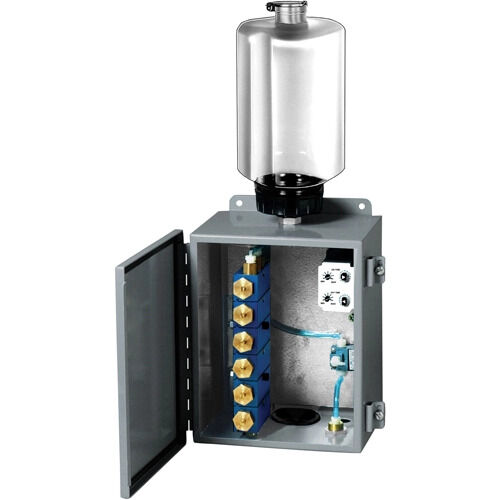

- Enclosure: NEMA 12; ; The Six Pack Lubrication System is equipped with a bank of air operated PurgeX« pumps. A solid state timer controls the "on" and "off" times of the delivery cycle through a 3-way solenoid valve. All components are wired and plumbed to a back plate that is enclosed in a hinged door NEMA 12 enclosure, protecting components from the environment. A rugged 1/2 gallon crystal clear polycarbonate reservoir with a hinged lid mounted on top, feeds the system and allows for visual confirmation of the fluid level. Each pump operates independently, allowing for individual adjustment to each lube point. This precise delivery allows for efficient use of expensive fluids as well as virtually eliminating any excess fluid entering the environment.
