Details

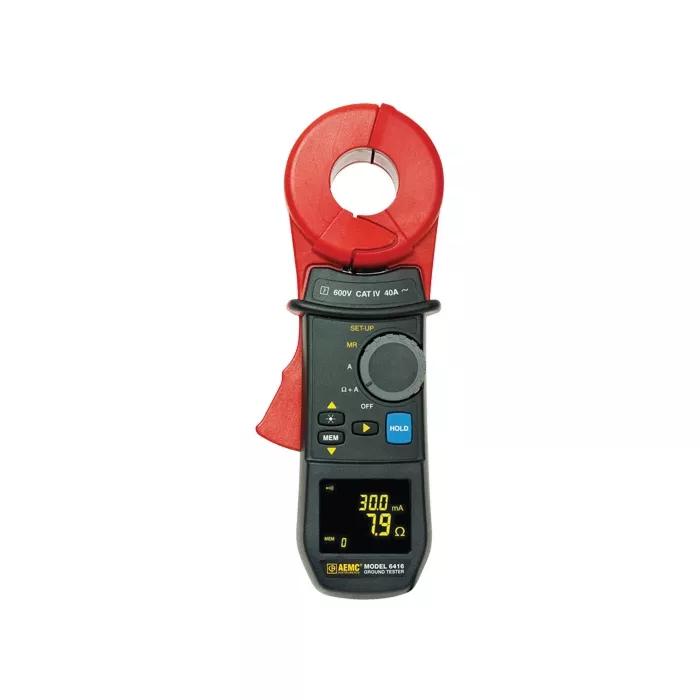

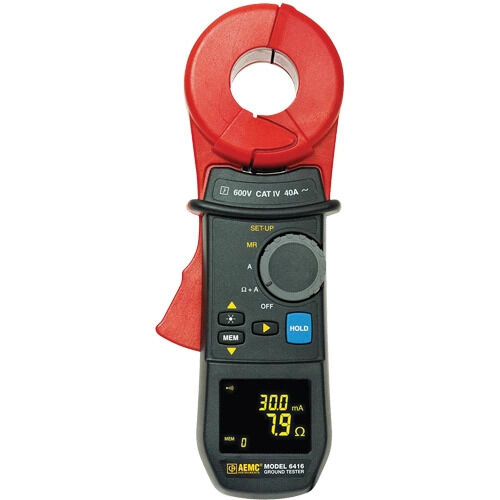

Clamp-On Ground Resistance Tester
- Employs stakeless ground loop testing and non-intrusive leakage current measurement, making it ideal for system troubleshooting in commercial, industrial, and utility applications
- Take measurements without disconnecting or de-energizing the ground system under test
- Incorporates visible and audible alarms for dangerous voltage and current levels
- Compact and rugged, for easy use in small places and harsh environments
- Hig- sensitivity measurement function of leakage current flowing to ground or circulating in ground loops from 0.2mA to 40A
- Contact voltage indication warns of unsafe conditions
- Selectable test frequency improves accuracy in inductive environments
- Buzzer and noise icon alert user to presence of dangerous voltage and current levels
- Multi-function, bright yellow organic display (OLED)
- Data storage function with time-stamping allows up to 2000 measurements to be stored
- Displays battery life information at power-up
- Auto power-off function
- Rugged Lexan® head and body construction resists breakage
- Designed to EN61010-1, 600V Cat. IV safety standards
- Applications include ground electrode system resistance, bonding/continuity checks, cell tower grounding verification, and ground measurements on railroad signaling systems
- Includes: (1) Clamp-On ground resistance tester, (1) Hard carrying case, (1) Calibration loop, (4) 1.5V AA batteries
