Details
Balometer - Hood Expansion Kit
- Detachable manometer can be used with optional probes
- Reads in. H2O, ft H2O, PSI, in. Hg, mm Hg, m H2O, kPa, mm Hg, bar
- Displays Min, Max and Average of up to 1000 readings
- Stores up to 1000 readings with time and date stamp
- Battery operated
- Includes CompuDat® software to download data to PC
- Shipped complete with manometer, 2' x 2' air capture hood/frame/base, 4 "AA" size rechargeable NiMH batteries, external battery charger, 18" pitot probe, 2 static pressure probes, 16 ft. neoprene tubing, wheeled carrying case, software and manual
- Diff. Pressure Range: ±15 in. H2O (3735 Pa)
- Absolute Pressure Range: 15 to 40 in Hg (356 to 1016 Hg)
- Air Velocity Range: 25 to 8000 fpm (0.125 to 40 m/s) pitot tube; 25 to 5000 fpm (0.125 to 25 m/s) air flow probe; 25 to 2500 fpm (0.125 to 12.5 m/s) velocity matrix
- Air Volume Range: 25 to 2500 ft3/m (42 to 4250 m3/h)
- Humidity Range: 0 to 95 %RH (optional probe)
- Temperature Range: -40° to 250°F(-40° to 121°C) probe dependent

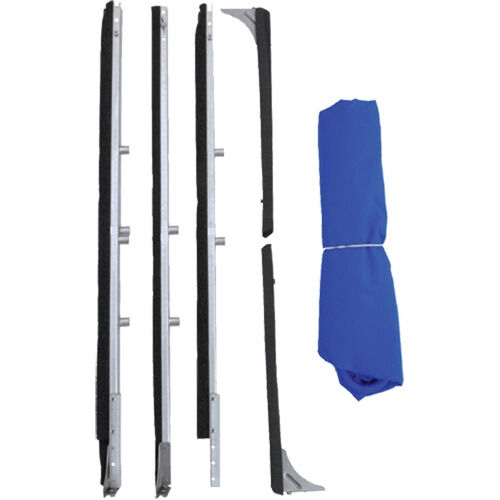

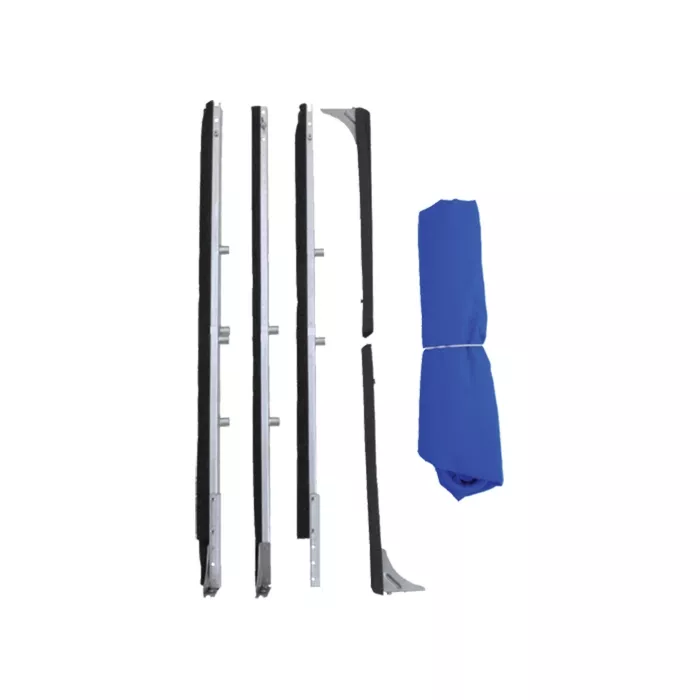

- Hood Expansion Kit, 2 hoods, 1' x 5' and 3' x 3'
