Details

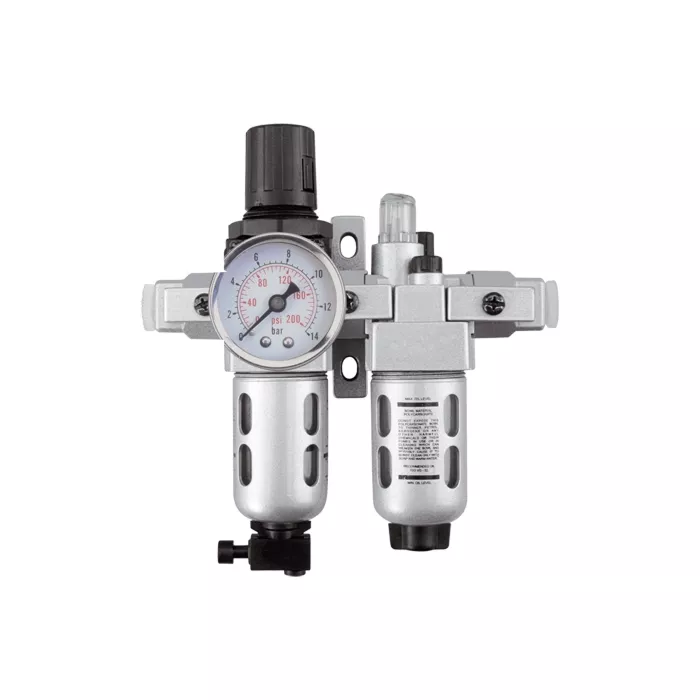

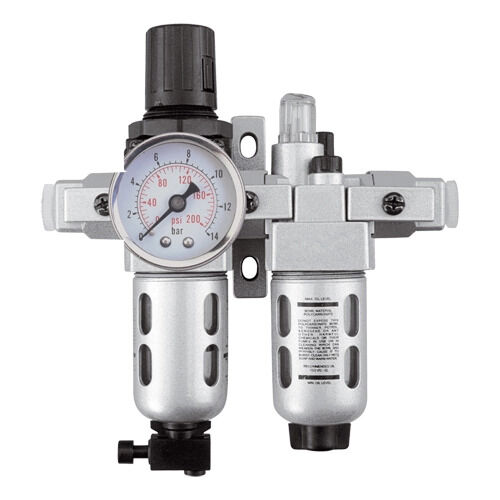

The Aurora Tools Modular Filter/Regulator & Lubricator is a space-saving, two-piece air preparation unit built for shops and facilities running pneumatic equipment. Rated 1/4" NPT with 18 SCFM @ 105 PSI and an adjustable range of 7-145 PSI, this combination unit filters, regulates, and lubricates compressed air in one compact assembly, complete with a gauge for easy pressure monitoring.
Key Features:
- Modular design: Filter/regulator and lubricator attach in series using spacers and piping adapters, so each component can be removed or mounted independently without disturbing the pipe line
- Mounting bracket included: Comes complete with a wall mounting bracket for stable, space-saving installation
- Pressure regulation: Maintains a steady outlet pressure across a 7-145 PSI range, unaffected by fluctuations in inlet pressure
- Filtration: Separates dust, dirt, moisture, and other contaminants from compressed air
- Nighttime auto-drain: Press-type manual drain with a nighttime drain feature that automatically empties the bowl once the compressed air supply is switched off
- Fog/Micro Mist lubrication: Feeds lubricant to pneumatic equipment at a constant oil-to-air density, effective over pipe runs up to 50 feet
- Construction: Polycarbonate bowl with 0.68 fl. oz. lubricant capacity
- Flow rating: 18 SCFM @ 105 PSI, 1/4" NPT connection, gauge included
Ideal For:
- Workshops and industrial facilities running air tools and pneumatic equipment
- Maintenance teams needing a compact, easily serviceable air prep unit
- Applications requiring consistent air pressure and lubrication over long pipe runs
This modular filter/regulator and lubricator combination keeps compressed air clean, pressure-regulated, and properly lubricated in a single, easy-to-mount unit.
