Details
Overview

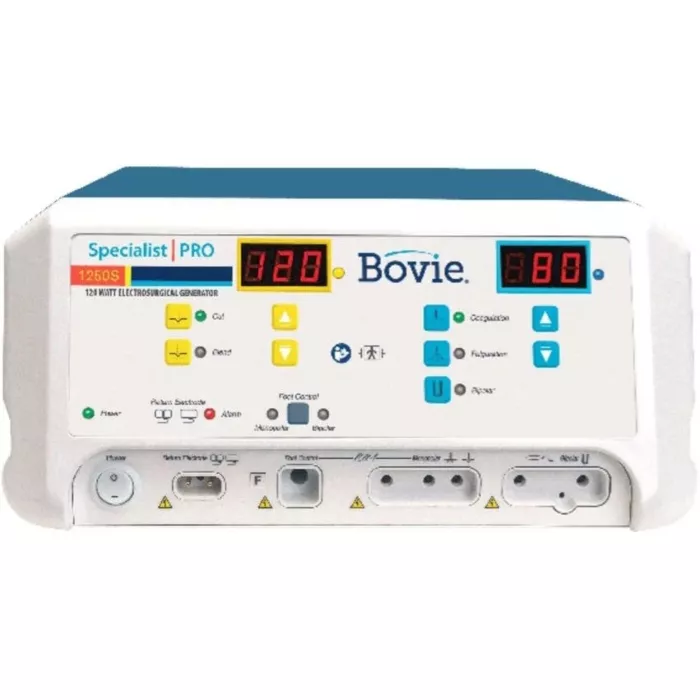

The Bovie® Specialist PRO (A1250S) is a versatile electrosurgical generator designed to meet the demands of busy physician offices and specialty facilities. Capable of performing most monopolar and bipolar surgical procedures, this unit offers five distinct energy outputs: Cut, Blend, Coagulation, Fulguration, and Standard Bipolar. With a maximum power output of 120 watts, it ensures precise and efficient tissue management across various surgical applications.
The generator provides RF energy for cutting, coagulating, and removing tissue during general surgeries, as well as in gynecologic, orthopedic, ENT, and urological procedures done in an operating room or procedure room.
Key Features:
-
Power Output: Up to 120 watts
-
Modalities: Cut, Blend, Coagulation, Fulguration, Standard Bipolar
-
Design: Modern push-button interface with large illuminated digital displays
-
Safety Features:
-
BovieNEM™: Neutral Electrode Monitoring for optimal patient protection
-
BovieDED™: Digital Error Detection system
-
Audible alert tones and self-test circuits
-
-
Versatility: Compatible with a wide range of monopolar and bipolar accessories
-
Warranty: Four-year manufacturer's limited warranty
Technical Specifications:
-
Monopolar Output:
-
Cut: 120 W @ 500 Ω
-
Blend: 90 W @ 800 Ω
-
Coagulation: 80 W @ 1000 Ω
-
Fulguration: 40 W @ 1000 Ω
-
-
Bipolar Output:
-
Standard Bipolar: 30 W @ 200 Ω
-
-
Output Frequency: 350 – 600 kHz
-
Line Voltage: 100 – 240 VAC
-
Line Frequency: 50 – 60 Hz
-
Dimensions: 30.5 cm (L) x 26 cm (W) x 15.2 cm (H)
-
Weight: Approximately 6.5 kg
Included Accessories:
-
ESP1: Sterile, Disposable, Push Button Pencil
-
ES01: Sterile, Disposable Blade Electrode
-
ES02: Sterile, Disposable Needle Electrode
-
ES20: Sterile, Disposable Ball Electrode
-
ESRE: Split Disposable Return Electrodes (Box of 5)
-
A1252C: Reusable Grounding Cable (2 units)
-
Power Cord: 15 ft, Hospital Grade
| Monopolar Specs | Output Power | Output Frequency | Repetition Rate | Open Circuit Vpeak Max | Crest Factor (Rated Load) |
|---|---|---|---|---|---|
| Cut | 120 W @ 500 Ω | 357 kHz ± 50 kHz | - | 1250 V | 2.9 ± 20% |
| Blend | 90 W @ 800 Ω (60% Cut, 40% Coag) | 357 kHz ± 50 kHz | 30 kHz ± 5 kHz | 1850 V | 3.3 ± 20% |
| Bipolar Specs | Output Power | Output Frequency | Repetition Rate | Open Circuit Vpeak Max | Crest Factor (Rated Load) |
| Coagulation | 80 W @ 1000 Ω | 475 kHz ± 19 kHz | 57 kHz ± 5 kHz | 3300 V | 5.5 ± 20% |
| Fulguration | 40 W @ 1000 Ω | 410 kHz ± 50 kHz | 25 kHz ± 5 kHz | 3900 V | 7.7 ± 20% |
| Bipolar | 30 W @ 200 Ω | 520 kHz (-14 kHz, +29 kHz) | 32 kHz ± 5 kHz | 1200 V | 6.9 ± 20% |
Literature
Bovie-Specialist-PRO-Electrosurgical-Generator-Brochure.pdf
Symmetry-Surgical-Bovie-Plastic-Surgery-Products-Brochure.pdf
Symmetry-Surgical-Bovie-Dermatology-Practice-Products-Brochure.pdf
Symmetry-Surgical-Bovie-OBGYN-Practice-Products-Brochure.pdf
Frequently Asked Questions (FAQs)
Q1: Is the Bovie Specialist PRO suitable for both monopolar and bipolar procedures?
Yes, it is designed to handle a wide range of monopolar and bipolar surgical applications.
Q2: What safety features are integrated into the unit?
The unit includes BovieNEM™ for electrode monitoring, BovieDED™ for error detection, audible alerts, and self-test circuits to ensure patient and operator safety.
Q3: Can the generator be used with standard accessories?
Yes, it is compatible with most industry-standard monopolar and bipolar accessories.
Q4: What is the warranty period for the Bovie Specialist PRO?
The generator comes with a four-year manufacturer's limited warranty.
Q5: Is the unit portable for use in different clinical settings?
With its compact design and weight of approximately 6.5 kg, it is suitable for various clinical environments.
