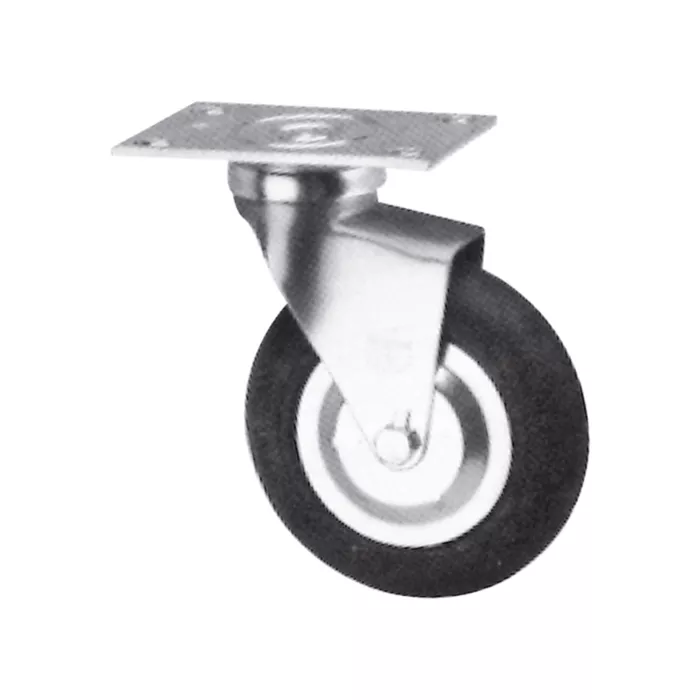

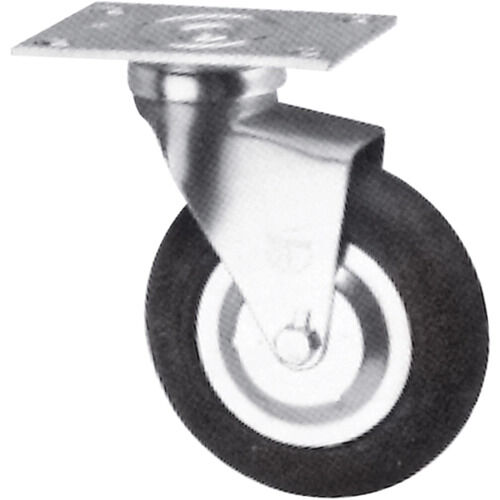

Caster
- 5/16" axle
- 7/16" rivet
- Double row ball bearing swivel/both raceways equal diameter
- All swivel parts case hardened to Rockwell 62C
- Thread guards standard on sizes larger than 2"
- Bright zinc finish
- Brake available on 3" and 4" dia. wheelsExcellent for:
- Material handling carts and dollies
- Institutional equipment ; ; Swivel top plate; Plate size: 2 1/2" x 3 5/8" ; Holes slotted for: 1 3/4" x 2 3/4" to 3"; Bolt hole size: 5/16"; ; Rigid top plate; Plate size: 2 3/4" x 4"; Holes slotted for: 1 3/4" x 2 7/8" to 3"; Bolt hole size: 5/16"
More Info
| Manufacturer Part Number |
12-24-XD |
| Brands |
DARCOR |
| Select Case Size |
Each |
| Plate Size |
2-1/2" x 3-5/8" (64 mm x 92 mm) |
| Dimensions |
4" (101,6 mm) |
| Frame Material |
Steel |
| Wheel material |
Neoprene |
| Caster Type |
Swivel |
| Tread width |
1" (25.4 mm) |
| Capacity |
125 lbs. (57 kg.) |
| Wheel diameter |
4" (101.6 mm) |
| Bolt Hole Spacing |
2-3/4" x 1-3/4" (70 mm x 44 mm) |
| Bolt Hole Size |
5/16" (7.93 mm) |
