Details

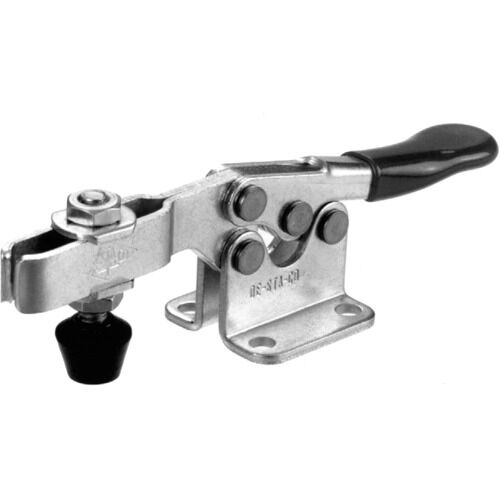

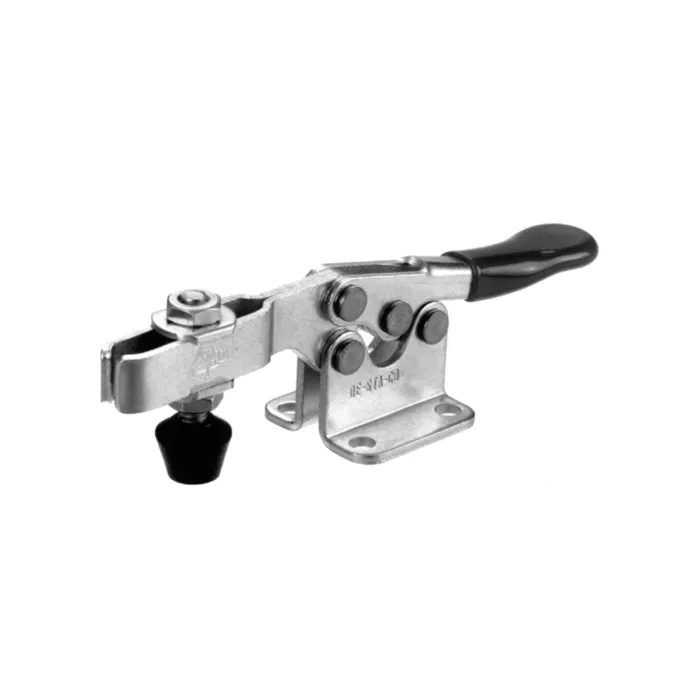

The DE-STA-CO 225-U Horizontal Hold-Down Clamp is a low-profile clamping solution built for applications where headroom is limited. Part of the 225 Series, this horizontal hold-down clamp delivers reliable holding force for fixturing, assembly, and industrial workholding tasks where a vertical clamp simply won't fit.
Key Features:
- Holding Capacity: Up to 500 lbs. per clamp, with larger capacities available on request
- Low Height Design: Ideal for setups where headroom is a concern
- Handle Action: Moves in the opposite direction of a vertical clamp handle for versatile mounting orientations
- Bar Style: U-shaped hold-down bar for greater rigidity and overall performance
- Spindle Assembly: 5/16-18 bonded neoprene spindle assembly (TN135) with flanged washers (TN125)
- Material Option: Some models available in stainless steel on request
Ideal For:
- Fixturing and assembly stations with limited overhead clearance
- Manufacturing and machine shop workholding setups
- Applications requiring a rigid, high-capacity horizontal clamp
Frequently Asked Questions:
Q: What is the holding capacity of the 225-U clamp?
It holds up to 500 lbs., with larger capacities available upon request.
Q: What's the difference between the solid and U-shaped bar?
The U-bar version, like this 225-U model, offers greater rigidity and overall performance compared to the solid bar option.
Q: What spindle assembly does the 225 Series use?
It uses a 5/16-18 bonded neoprene spindle assembly (TN135) with flanged washers (TN125).
