Dual Range Inclined U-Tube Manometers
- Inclined U-Tube Manometer
- As a regular U-tube manometer it indicates high range pressure from 0 to 16 inches of water (with .2" minor divisions) on the right leg; as an inclined manometer it reads low range pressure from -.20 to 0 to 2.6 inches of water (with .02" minor divisions) on the left leg
- Easy to use; simply incline unit until fluid level reads zero
- Magnetic clips hold the gauge in position on steel duct surface

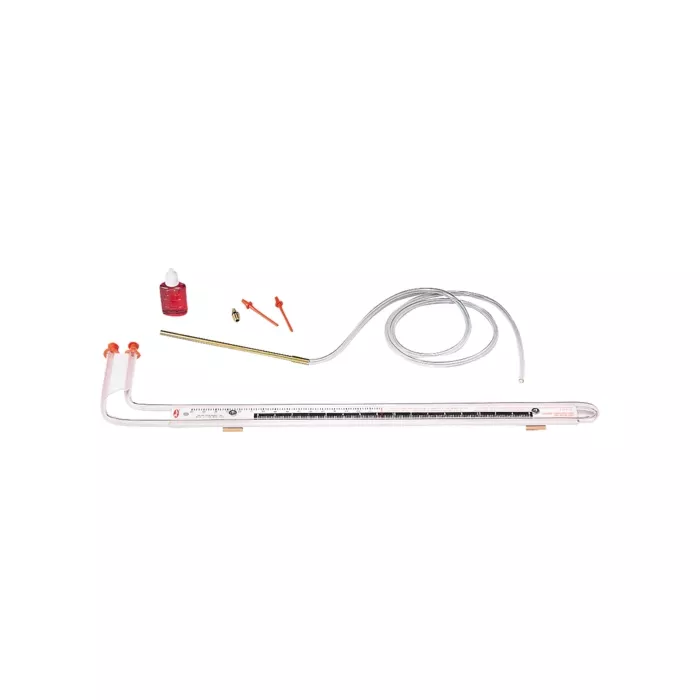

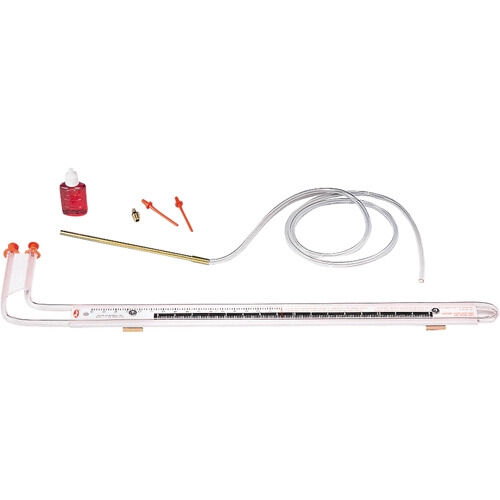

- Unit comes complete with: Two magnetic clips to hold the instrument to metal surfaces; two plastic carrying plugs with retainers for use when the manometer is not in service; flexible vinyl plastic tubing connectors; 4 1/2' length of plastic tubing; brass terminal tube, 1/4" dia. x 8" long; 1/8" NPT brass adapter; 3/4 oz. bottle red gauge fluid; and vinyl carrying case.
