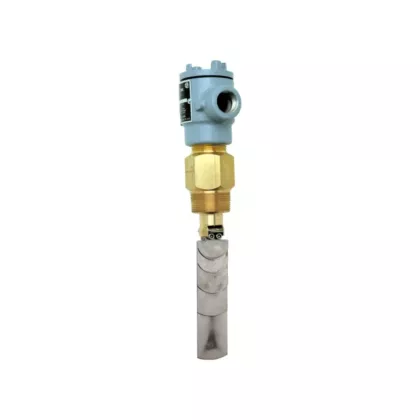

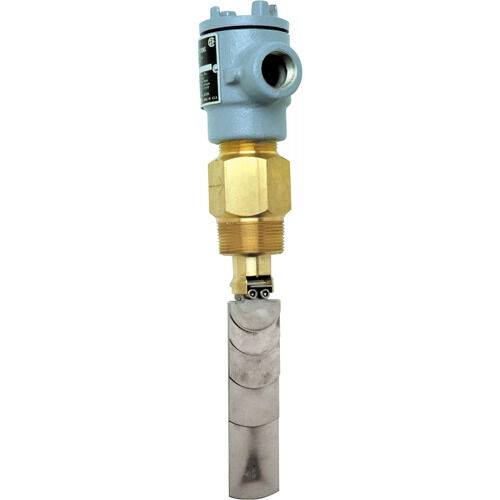

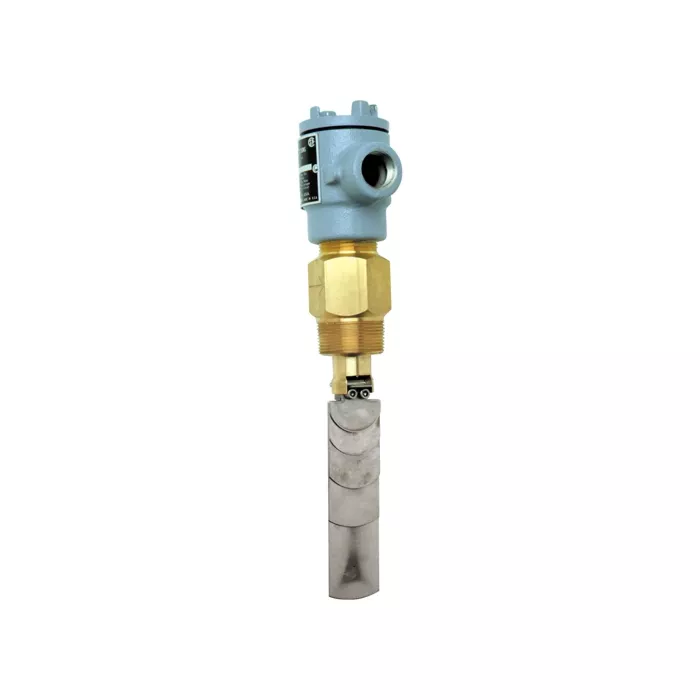

Flow Switch - Universal Vane
- Operates automatically to protect equipment and pipe-line systems against damage from reduction or loss of flow;
- Universal multi-layer vane accommodates pipe sizes from 1-1/2" up to 20";
- Custom vanes are available with factory calibration;
- Free swinging vane attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm;
- No bellows, springs or seals to fail;
- Simplicity of design and a leak-proof switch body eliminates the possibility of process fluid entering the switch compartment;
- Threaded conduit enclosure cover permits easy inspection or replacement of electrical assembly without shutting down the process, or removing electrical conduit;
- Unit fits directly into pipeline tee, thredolet or flange for easy installation;
- Pendulum-like vane action responds accurately to fluid flow rate;
- Custom vane or multi-layer vane is sensitive to low velocity flows, yet is rugged enough to withstand high flow surges;
- Optional delay timer can be wired into the installation;
- All units are explosion proof and listed UL and CSA for Class I, Groups C and D, Class II, Groups E, F and G;
- Switch body is one-piece milled and bored brass or 316SS;
- Brass models rated for pressures up to 1000 PSIG, stainless steel models rated for pressures up to 2000 PSIG
