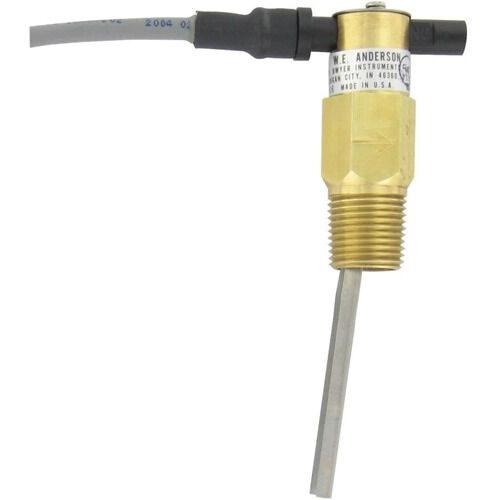

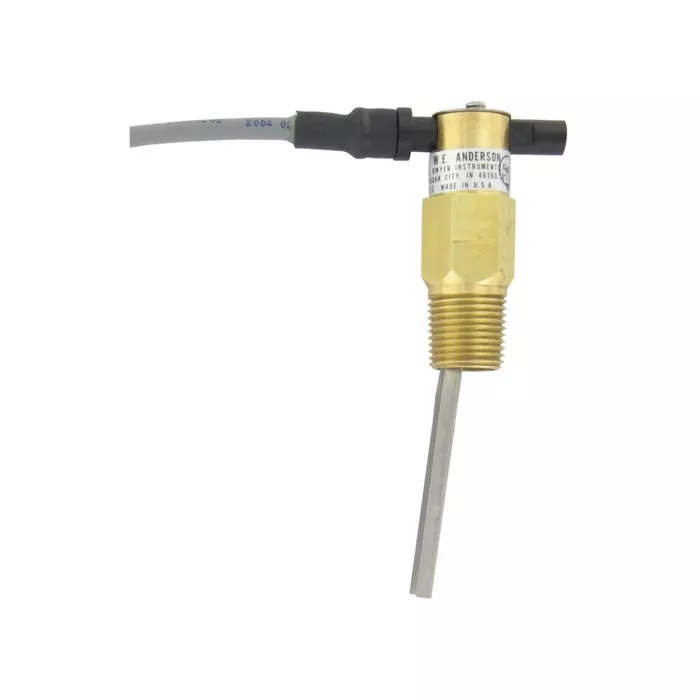

Flow Swtich - Mini-Size
- Designed to provide an inexpensive, reliable unit to monitor the presence or absence of flow in a system;
- Rugged, hermetically sealed reed switch is encapsulated in a polypropylene switch housing that fits into a standard heavy duty leak proof brass body or optional 303 stainless steel body ;
- Patented switch adjustment allows the user to change the switch to normally open (NO) or normally closed (NC) in the field merely by loosening two screws;
- Switch housing is located outside the process media, making switch change-over or maintenance easy without interruption of process flow;
- Wetted materials of brass, stainless steel and ceramic 8 magnet provide excellent chemical resistance and compatibility;
- Full size, trimmable stainless steel vane is provided with a removable laminated template;
- Template is calibrated for brass or ductile iron reducing tees and forged steel straight tee/bushing combinations ;
- Allows for field installation in pipelines from 1/2" to 2" diameter;
- Brass models rated for pressures up to 1000 PSIG, stainless steel models rated for pressures up to 2000 PSIG
