Details

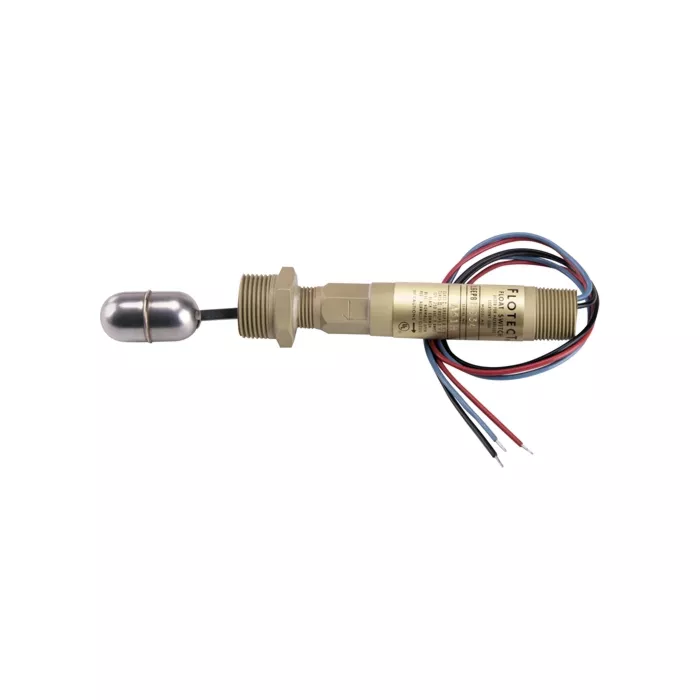

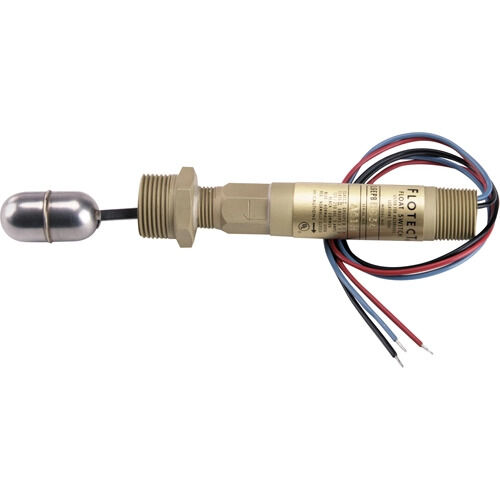

Liquid Level Switches
- Magnet on the opposite end of the float level controls a second magnet on the switch actuating lever located in the switch housing
- Maintenance is easy since the electrical assembly can be removed for inspection or replacement without removing the entire switch
- Stainless steel float lever arm and polypropylene or stainless steel float are compatible with most process fluids
- Sensitive to level changes of less than 1/2" (12 mm)
- UL/CSA listed for explosion-proof service - Class I, Groups A, B, C & D and Class II, Groups E, F & G
- CSA model furnished with optional junction box
- Temperature Limits: 220°F (105°C) max.
- Electrical Rating: One (or two) SPDT snap action micro-switch. 5 A, 125/250 VAC
- Piping Connection: 1" NPT
- Installation: Horizontal with index arrow pointing down
- Machined from brass or stainless steel bar stock, the body is leak proof, eliminating the possibility of the process media entering the switch housing
- Float level pivots within the body when the process liquid displaces the solid polypropylene or stainless steel float
