Details

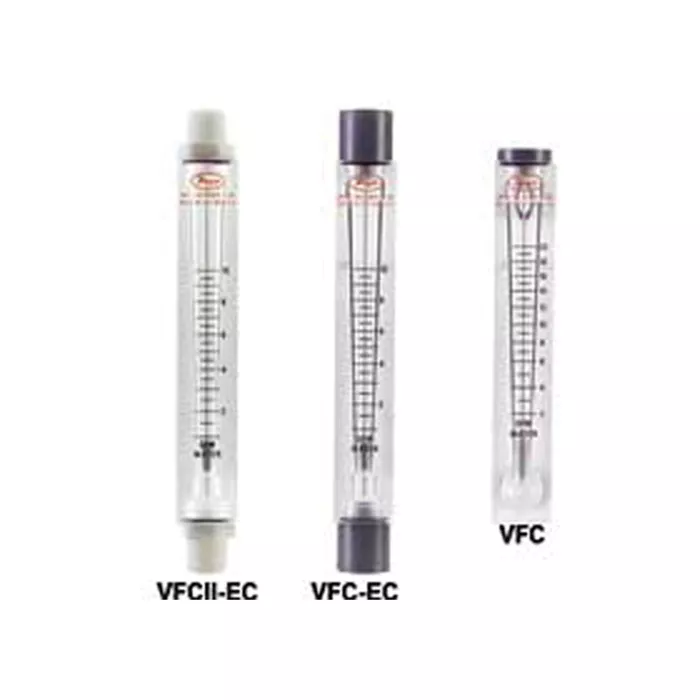

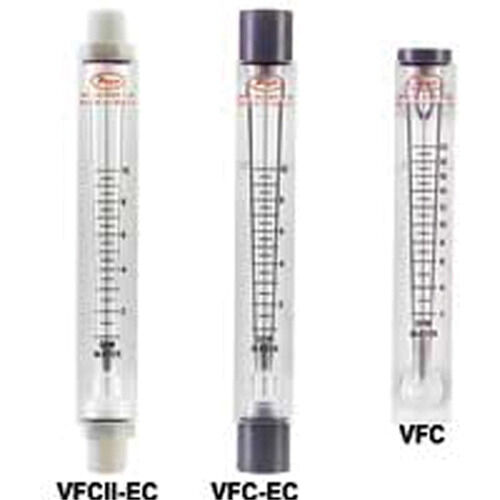

VFC In-Line Flow Meter - 2" Scale (No Valve)
- Cut and precision machined from solid, clear acrylic plastic bodies that permit complete visual inspection. Tapered bore is precision machined to a smooth surface that also provides perfect visibility of the indicating float;
- VFC models are provided with PVC connections tapped for 1"NPT thread ;
- All models have Buna-N O-ring seals for leak proof connections for maximum installation versatility;
- VFC models, intended for use with external metering valves, are equipped with a large diameter stainless steel guide rod and a specially designed stainless steel float to provide excellent float stability at the high flow ranges;
- 100 PSI maximum pressure rating;
- VFC models have a maximum temperature rating of 120°F
