Details

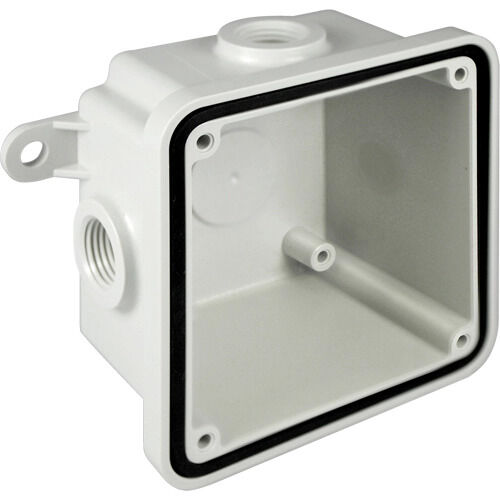

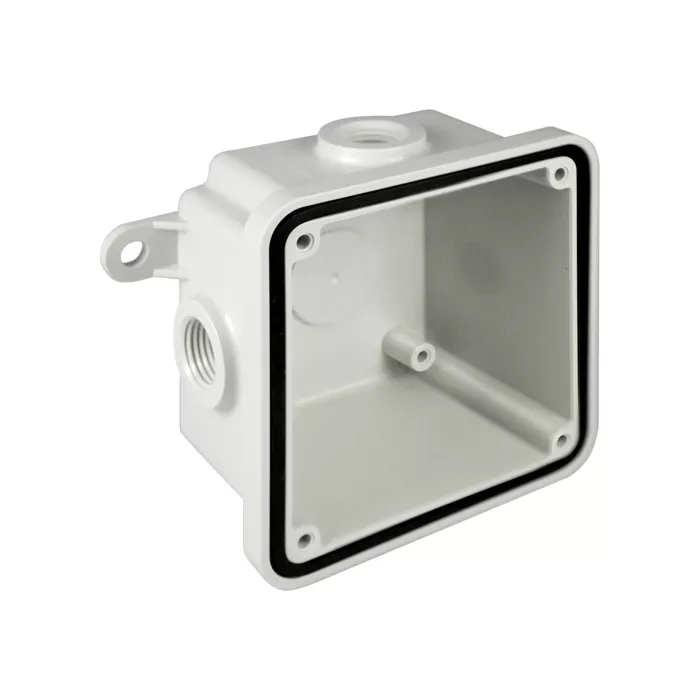

Vibratone® Molded Weatherproof Housing
- Molded thermoplastic neoprene-gasketed weatherproof housing for outside use for Vibratone® Electronic Horn
- Designed for routine signaling and fire alarm use
- Complete with mounting lugs; provided with 3 entrances for 1/2" conduit; 4-3/8" square box; 2-7/16" deep, offset mounting lugs on 5" centers
- Range of up to 200 feet
- Coded or sustained tones
- No duty cycle or interval limitations
- Fire Regulated 16-33VDC ; General Purpose Signal 12-24 V DC
- 99 dBA at 10' on axis
- Four wire terminal block and supervisory diode
- Type 4X when installed with panel mount gasket (included) or optional non-metallic weatherproof backbox (Model XE712)
- Marine rated
- UL, cUL and ULC listed
- CSFM listed
