Details

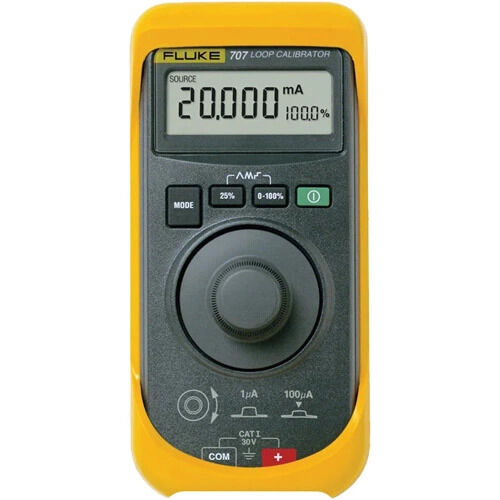

707 Loop Calibrator
- High performance for calibration, repair, and maintenance
- Features large display and simple, quick-click interface for easy one-handed operation
- Simultaneous mA and % readout for quick, easy interpretation of readings
- Provides 1 µA resolution for mA source, simulate, and measure
- HART® compatible resistance connected in series with the loop supply for compatibility with HART communicators
- Features push button 25% steps for fast, easy linearity checks
- Includes 0-100% "span check" for fast confirmation of zero and span
- Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests
- Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM
- Runs on a single 9 V battery that is easily changed without breaking the calibration seal
- Features an innovative output adjustment dial.
- Includes: AC70A alligator clips, C10 protective yellow holster with Flex-Stand™, Instruction sheet, TL75 safety-designed test lead set, NIST-traceable calibration report and data
