Details

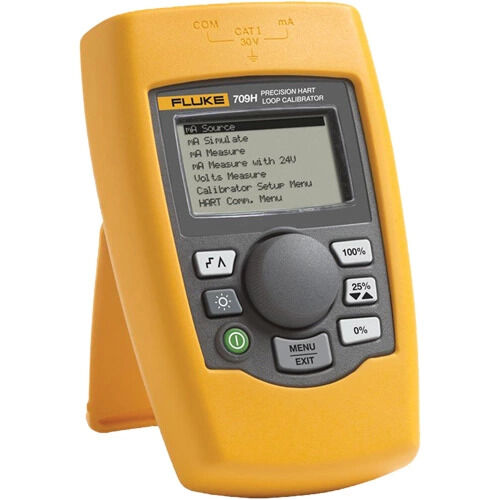

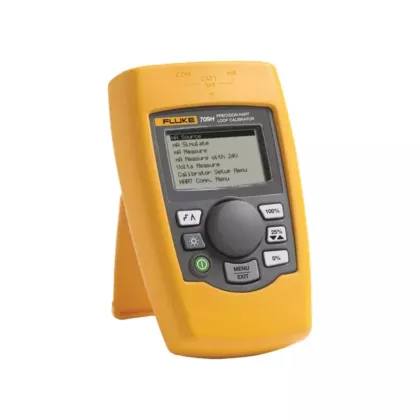

709H Loop Calibrator with HART® Communications/Diagnostics
- Communicates with and tests HART® smart instruments
- Intuitive user interface with quick-set knob for fast setup
- Includes built-in selectable 250 Ω resistor for HART® communication
- Features 24 V DC loop power with mA measure mode (-25% to 125%)
- Requires only simple two wire connection for all measurements
- Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges
- Provides auto shutdown to conserve battery life (adjustable up to 30 minutes)
- Offers variable step and ramp time in seconds
- Provides adjustable span selection
- Includes valve test functionality (simulates defined mA values with % keys)
- Quickly transfers calibration data for documentation in either (.csv) or (.txt) format with optional 709H/Track software/cable
- Includes: (1) 754-8016 alligator clip set, (1) 75X-8014 stackable lead set, (1) TP220-4201 test probe set, (1) AC280-5001 SureGrip™ hook clip set, (1) Soft case, (6) AAA batteries, (1) Product manual CD-ROM
