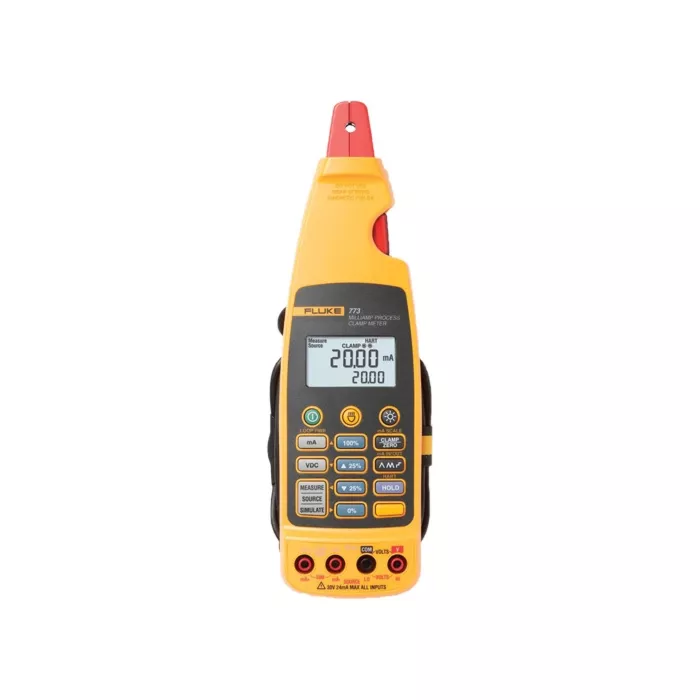

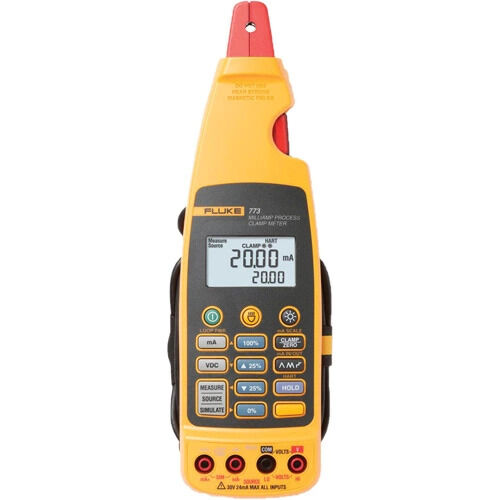

773 Milliamp Process Clamp Meter
- Loop calibrator that measures 4 to 20 mA signals without breaking the loop
- Sources 4 to 20 mA signals for testing control system I/O or I/Ps
- Measures DC voltage to verify 24 V power supplies or voltage I/O signals
- Measures mA signals for PLC and control system analog I/O
- Simultaneously measures the mA signal with the clamp and sources a mA signal
- Features a detachable clamp with extension cable for measurements in tight locations
- Captures and displays changing measurements with hold function
- Offers mA output linear ramp or 25% step output
- Extends battery life with auto-off and backlight timeout
- Enables milliamp signal logging to a separate logging device without breaking the loop
- Measurement spotlight to illuminate hard to see wires in dark enclosures
- Measures 10 to 50 mA signals in older control systems using the 99.9 mA range
- Automatically changes the 4 to 20 mA output for remote testing
