Details

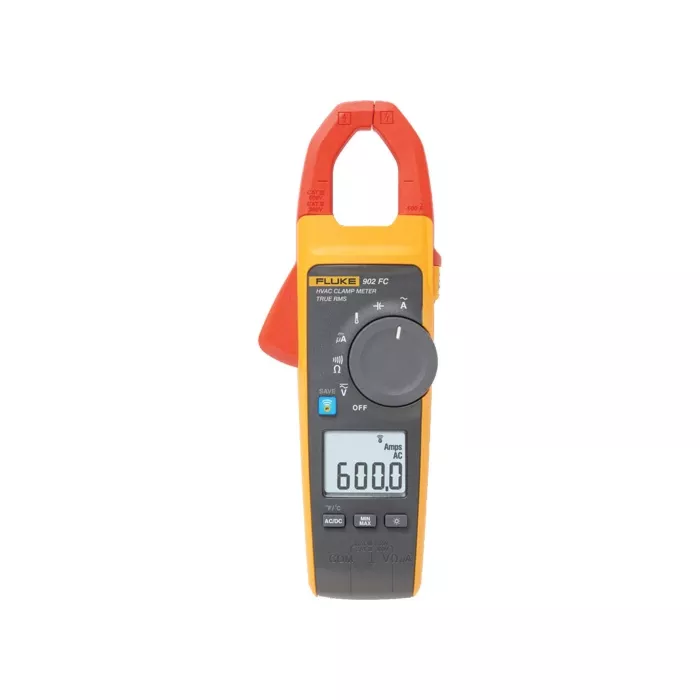

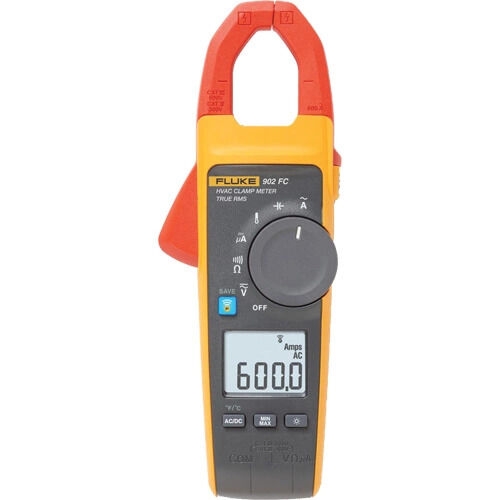

902FC AC/DC Clamp Meters
- HVAC Clamp Meter
- True RMS AC/DC clamp meter designed specifically for HVAC applications
- Measure AC and DC voltage and current, resistance and continuity; as well as contact temperature and capacitance
- True RMS measurements
- Accurately reads the voltage output of variable frequency drives due to its low pass filter
- Capture flue gas temperatures with a Type K thermocouple
- Conduct flame rod testing on furnaces accurately and easily
- Min/Max readings and display hold
- Display backlight
- AC/DC Voltage Range: 0 to 600.0 V
- AC Current Range: 0 to 600.0 A
- DC Current Range: 0 to 200.0 µA
- Resistance Range: 0 to 9999 Ω
- Capacitance Range: 1 to 1000 µF
- Temperature Range: -10 to 400°C (-14 to 752°F)
