Details

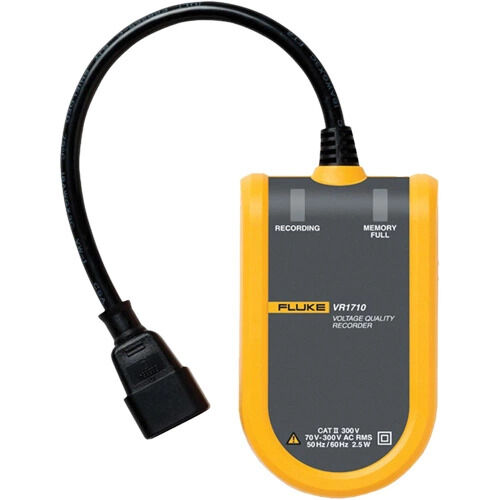

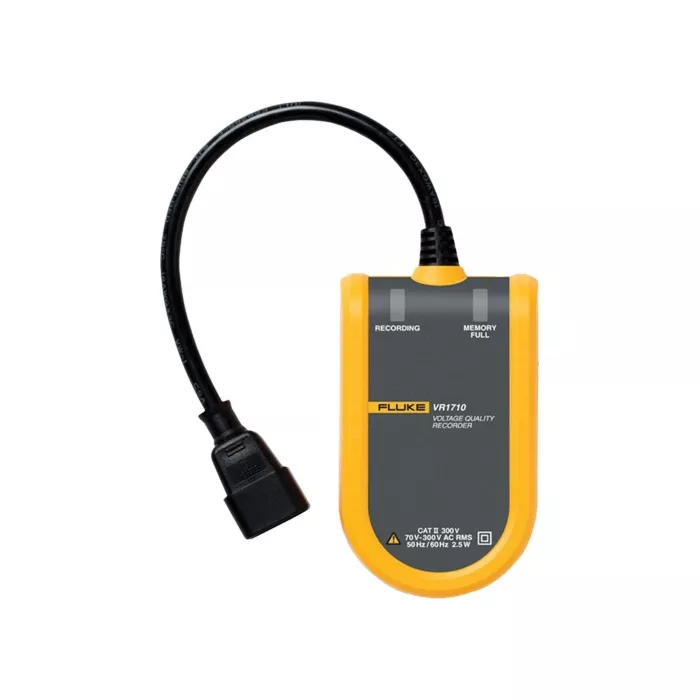

VR1710 Voltage & Power Quality Recorder
- Single-phase, plug-in voltage quality recorder for detecting and recording power quality problems
- Records voltage trends, dropouts, and power quality to pinpoint the root cause
- Plugs directly into the main power socket to capture data
- Presents a clear graphical summary of data and a quick overview of key power quality parameters
- Power quality parameters including RMS average, transients, flicker, and harmonics up to the 32nd are recorded using a user-selected average period from 1 seconds to 20 minutes
- Measures Min/Max/Average RMS values (1/4 cycle) with time stamp so you can quickly see what happened and when
- Presents actual transient display (>100 μs) with time stamp to help you identify power quality issues quickly with included graphical software
- Records flicker to EN 61000-4-15 and individual harmonic and THD values with trends to help you easily determine if the problem is power quality or equipment related
- Reduces analysis time by tracking event quantities and magnitudes
- PowerLog software package for quick download, analysis, and automatic reporting
- Includes: Fluke VR1710 Plug-in Voltage Recorder, USB cable, PowerLog software CD, Universal power cord adapter
