Details

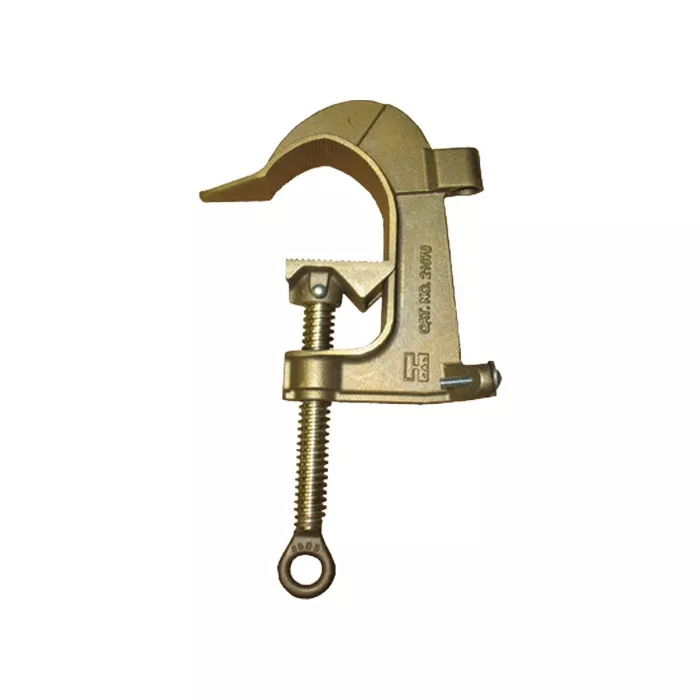

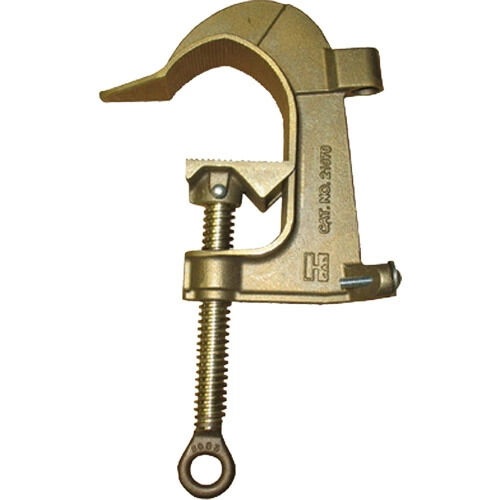

Bronze C-Head Ground Clamp
- Serrated jaw
- 5H rated
Hastings Fiber Glass Bronze C-Head Ground Clamp, 2-7/8"" (73 mm) (21070)
SKU:
UAI511
Mfr. P/N:
21070
Availability: In Stock
This product ships within 1 - 2 Business Days
Details
More Info
Returns
More Info
| Manufacturer Part Number | 21070 |
|---|---|
| Brands | Hastings Fiber Glass |
| Select Case Size | Each |
| Max. Fault Current Rating | 43 kA @ 15 Cycles, 30 kA @ 30 Cycles |
| Max. Size Cable | 4/0 |
| Main Line Range (Min.) | 6 Solid, 0.16"" Diameter |
| Main Line Range (Max.) | 2.88"" Outside Diameter Cable or Bus |
| Dimensions | 2-7/8"" (73 mm) |
| Weight | 3.3 lbs. |
| Clamping Capacity | 2-7/8"" (73 mm) |
| Terminal Type | Threaded |
