Overview

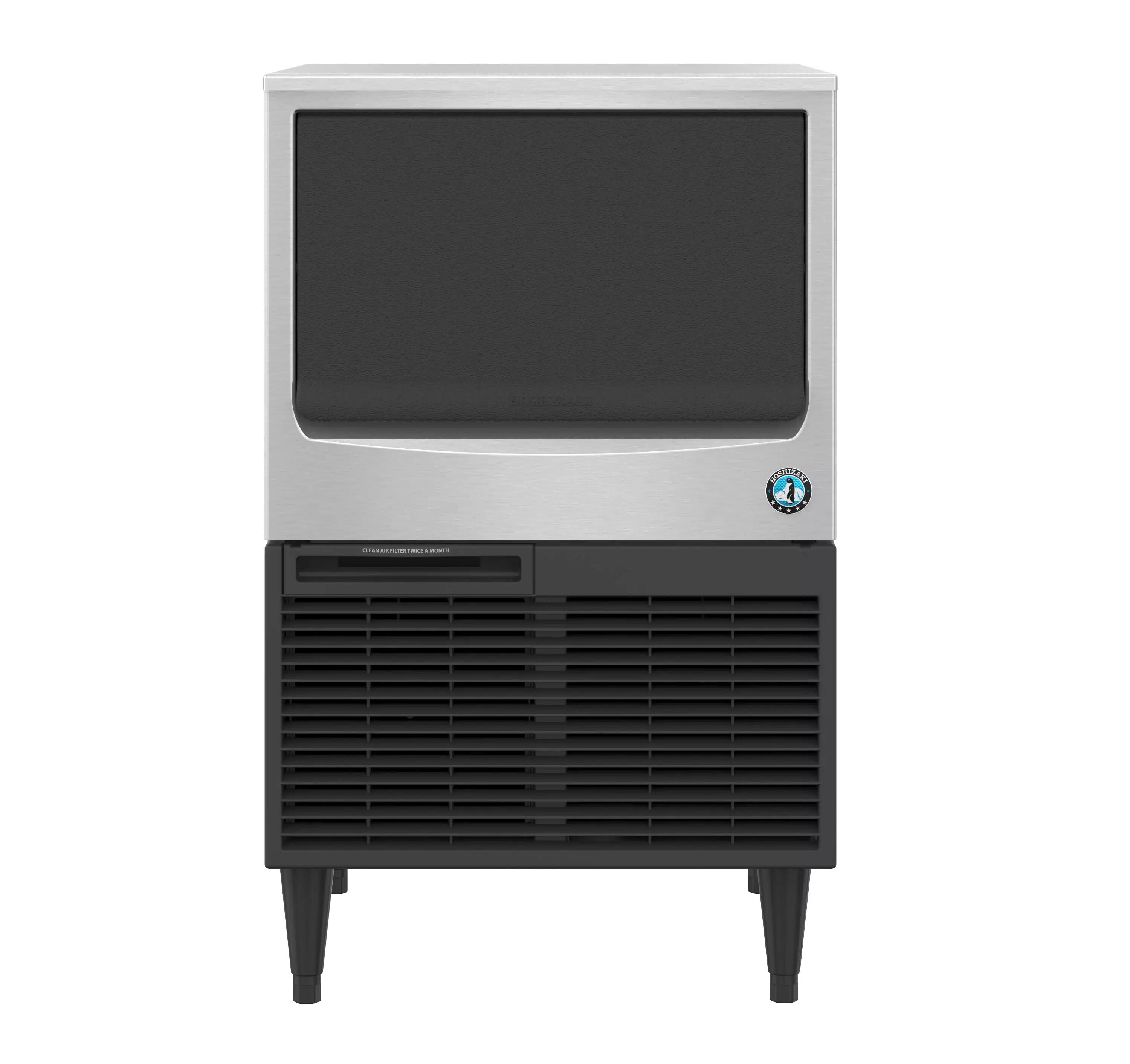

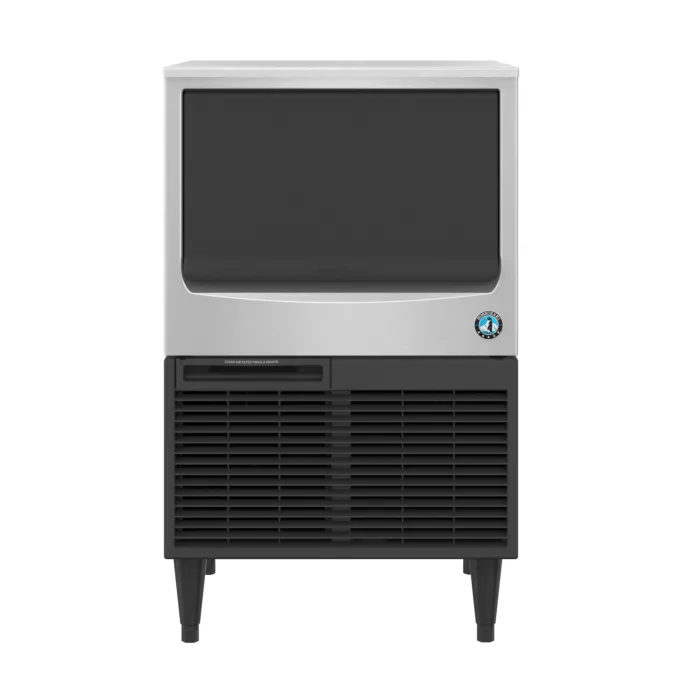

The KM-161BAJ is capable of producing approximately 163 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-161BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-160BAJ.
Dimensions: 23-3/4" W x 28" D x 39" H
Up to 163 lbs of ice produced per 24 hours
Up to 78 lbs of built-in storage capacity (2.6ft3)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior
Front in, front out airflow
EverCheck™ alert system
CycleSaver™ design
Slide in door, ice bin opening is ADA compliant
R-134a refrigerant (7.4 oz. / 210 g)
Heat Rejection:3050 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
7.1 amps (15 Amp Max fuse)
8.6 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.
