Details

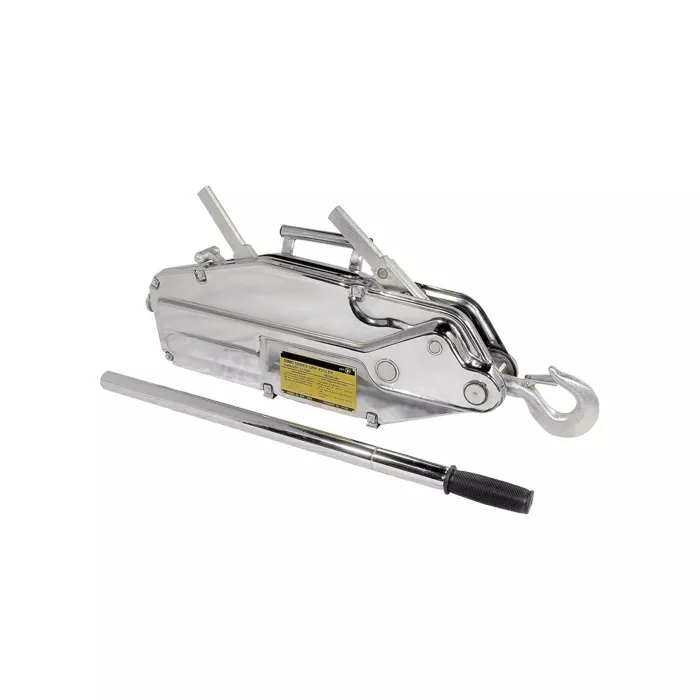

3 Ton Heavy-Duty Grip Puller without Cable
- Compact high strength steel housing
- Light weight, simple and safe to operate
- May be used in any position to lift, pull, lower, or stretch heavy loads
- The rope clamp system is easily disengaged with a lever, allowing smooth installation of the wire rope
- Overload protection is built-in with a shear pin in the forward lever, which will break when overloaded
- The broken pins can be replaced without removing the load and spare shear pins are conveniently located in the rubber sleeve of the telescopic handle for SGP-75A and in the carrying handle for the SGP-150A and SGP-300A
- The design enables wire rope to be fed through 2 sets of wear resistant interlocking jaws by a single operating lever
- The SGP Wire Rope Pulling Hoist has a parallel clamping system, which has a large surface contact area, providing an evenly distributed grip at a lower force that results in less rope wear and maximum safety
- All SGP Wire Rope Pulling Hoists are tested and have individual serial numbers for easy traceability to a test certificate (included)
- Uses standard ASA and IWRC wire rope (not included)
- Meets ANSI B30.21 standards (certificate included)
