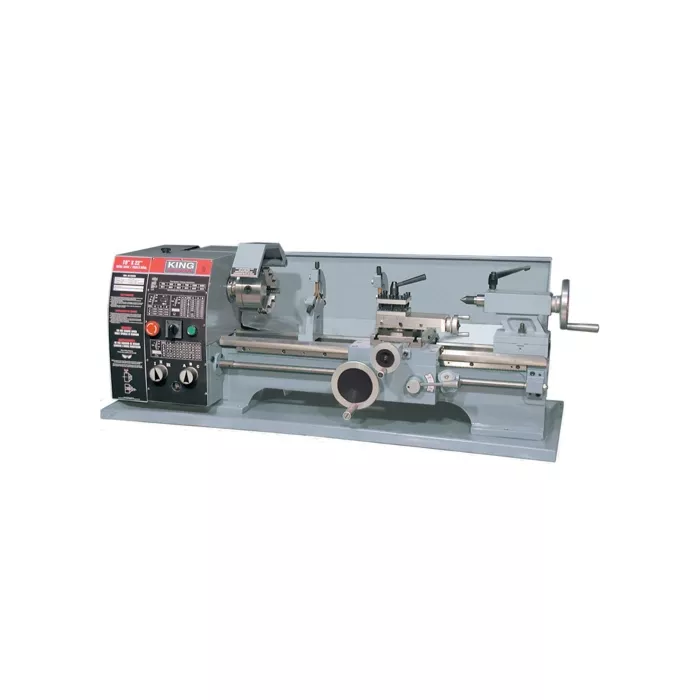

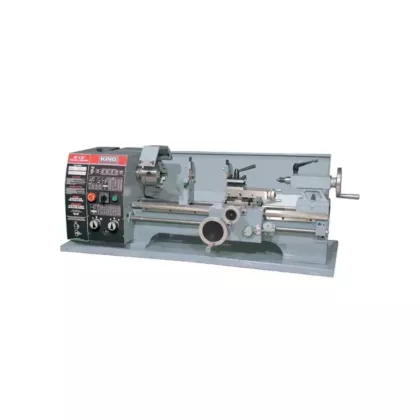

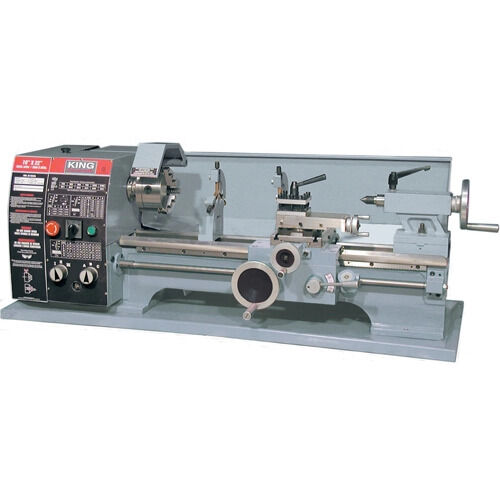

Belt Drive Metal Lathes
- Safety chuck guard automatically shuts lathe off when lifted
- Includes: 5" 3-jaw chuck, 6 1/2" 4-jaw chuck, replacement gears, 4-way tool post, steady rest, follow rest, 8" face plate, thread chasing dial indicator, MT#3 dead center, full length splash guard, tool box, chuck key and hex keys
More Info
| Select Case Size |
Each |
| Brands |
KING CANADA |
| Manufacturer Part Number |
KC-1022ML |
| Voltage |
110 V |
| Overall Height |
19" |
| Overall Width |
23" |
| Motor |
1 HP, 12 A, 1 phase, 60 Hz |
| Swing Over Bed |
10" |
| Spindle Speeds |
6 (150-2400 RPM) |
| Spindle Bore |
1" |
| Thread Cutting Range |
8-72 TPI |
| Taper in Tailstock |
MT#3 |
| Total Travel of Top Slide |
4 1/4" |
| Total Travel of Cross Slide |
6 3/8" |
| Distance between Centers |
22" |
| Swing Over Cross Slide |
6" |
| Swing Over Gap |
10" |
| Taper in Headstock |
MT#4 |
| Dimensions |
22" X 10" X 10" X 1" X 23" |
| Overall Length |
50" |
