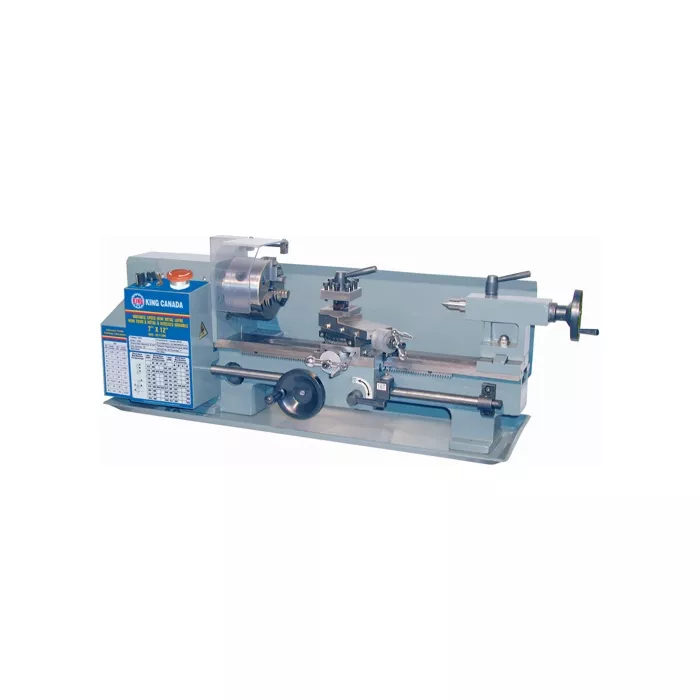

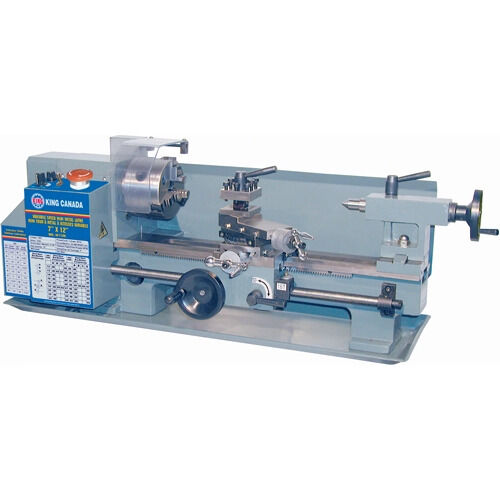

Mini Metal Lathes
- Clear plastic safety guard automatically shuts lathe off when lifted
- Forward/reverse control
- Variable speed control: 0-2500 RPM
- Includes: 4" 3-jaw chuck, quick change gear box, replacement gears, 4-way tool post, MT#2 dead center, threading dial indicator, emergency stop button, chuck key and hex keys
More Info
| Select Case Size |
Each |
| Brands |
KING CANADA |
| Manufacturer Part Number |
KC-0712ML |
| Voltage |
110 V |
| Overall Height |
13" |
| Overall Width |
11-1/2" |
| Motor |
5.5 A, 1 phase, 60 Hz |
| Swing Over Bed |
7" |
| Spindle Bore |
3/4" |
| Thread Cutting Range |
12-52 TPI |
| Taper in Tailstock |
MT#2 |
| Total Travel of Top Slide |
3" |
| Total Travel of Cross Slide |
2 3/4" |
| Distance between Centers |
12" |
| Swing Over Cross Slide |
4 1/2" |
| Swing Over Gap |
7" |
| Taper in Headstock |
MT#3 |
| Spindle Variable Speeds |
2 (0-1100 RPM, 0-2500 RPM) |
| Dimensions |
12" X 7" X 7" X 3/4" X 11-1/2" |
| Overall Length |
32" |
