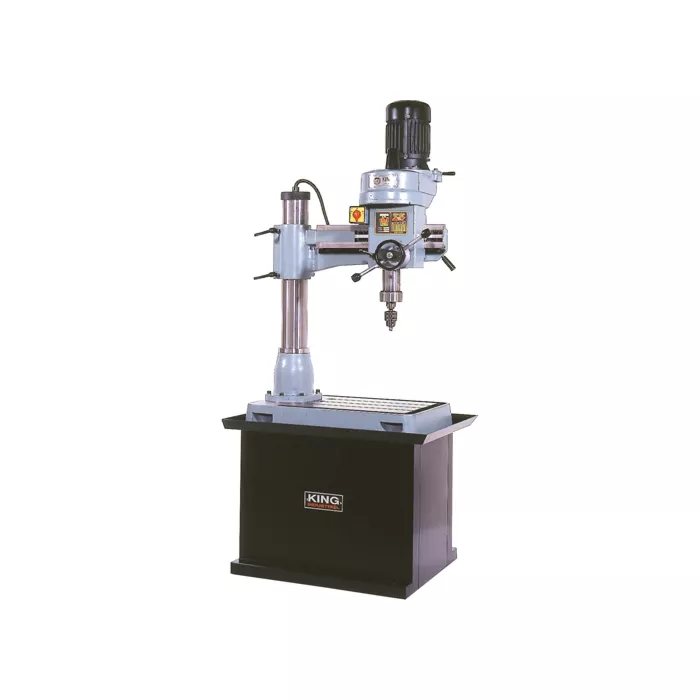

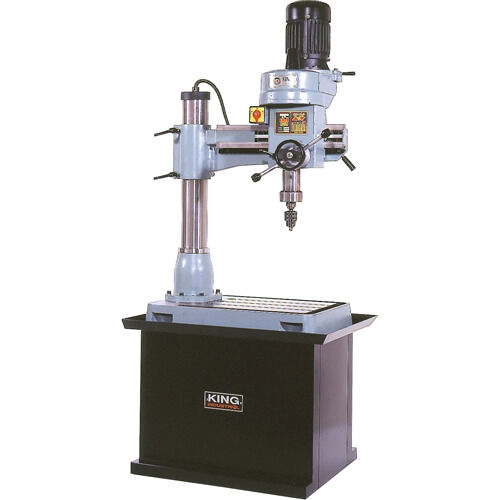

Radial Drilling Machine
- Spindle is equipped withheavy-duty tapered bearings
- Head swivels 180¦ and iseasily raised and lowered
- Head travels up to 14"
- Includes: Forward reverse switch,1/2" chuck with key and stand ; ; Model No. TZ529; Mfg. No. KC-35; Chuck size: 1/2"; Speeds: 5 (340-3000 RPM); Table size: 21 5/8" x 19 5/8"; Spindle Taper: #3 Morse; Motor: 1.5 HP, 11 A, ; single phase, 60 Hz; Voltage: 220 V; Dimensions: 24" L x 34" W x 90" H; Weight: 638 lbs.
More Info
| Select Case Size |
Each |
| Brands |
KING CANADA |
| Manufacturer Part Number |
KC-35 |
| Table Dimensions |
21-5/8"" W X 19-5/8"" L |
| Spindle Taper |
#3 Morse |
| Speeds |
5 |
| Speed |
(340-3000 RPM) |
| Dimensions |
1/2"" X 21-5/8"" la X 19-5/8"" lo |
| Chuck Size |
1/2"" |
| Size |
24"L X 34"W X 90"H |
