Details

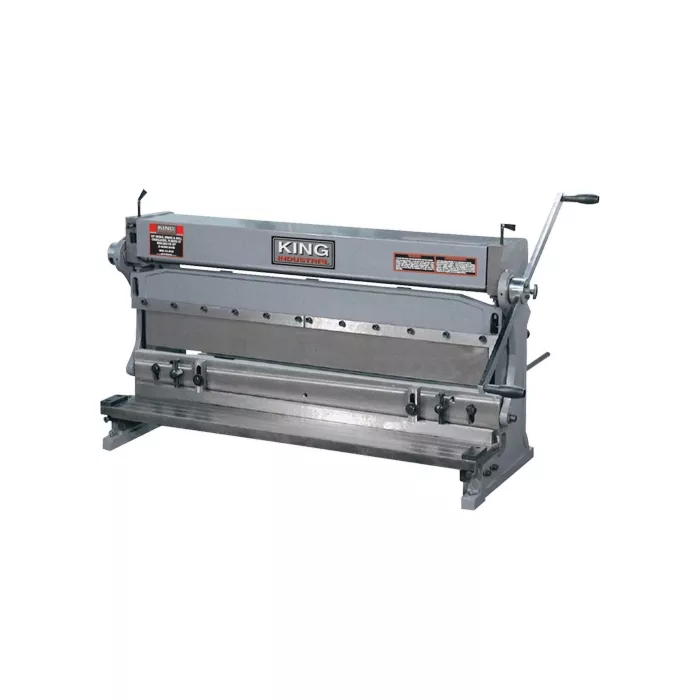

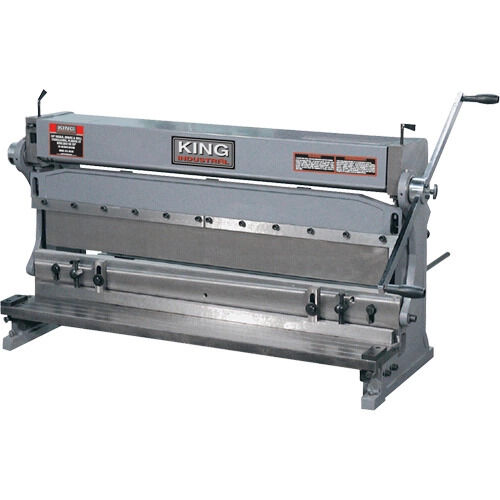

Shears, Brake & Roll
- Sturdy cast iron frame
- Sturdy cast-iron frame
- Dual edge, reversible shear blade
- One female "V" shaped die
- Slip rolls are precision turned, ground and polished with wire grooves
- Includes: adjustable length stop, height stop block and extension bars with 90° angles
- Includes: Adjustable length stop, height stop block and extension bars with 90 degree angles
More Info
| Select Case Size |
Each |
| Brands |
KING CANADA |
| Manufacturer Part Number |
KC-1220 |
| Slip Roll Minimum Radius |
13/16" |
| Shear Max. Length |
12" |
| Brake Shut Height |
2-1/2" |
| Shear Material Stop Range |
2 1/2" - 10 5/8" |
| Slip Rolls Maximum Length |
10-3/4" |
| Brake Male Die Sizes |
4", 3", 2", 2", 1" |
| Slip Roll Max. Thickness |
20 Gauge |
| Slip Roll Maximum Thickness |
20 Gauge |
| Slip Roll Max Length |
10 3/4" |
| No.of Slip Rolls |
3 |
| Slip Roll Roller Diameter |
1 1/2" |
| Dimensions |
12" X 2 1/2" - 10 5/8" X 2-1/2" |
| Shear Max. Thickness |
20 Gauge |
| Brake Max. Thickness |
20 Gauge |
