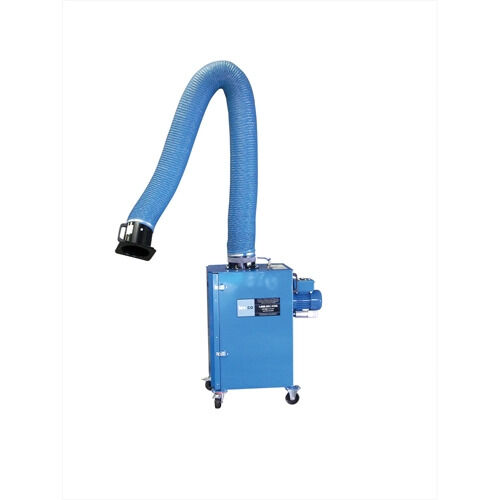

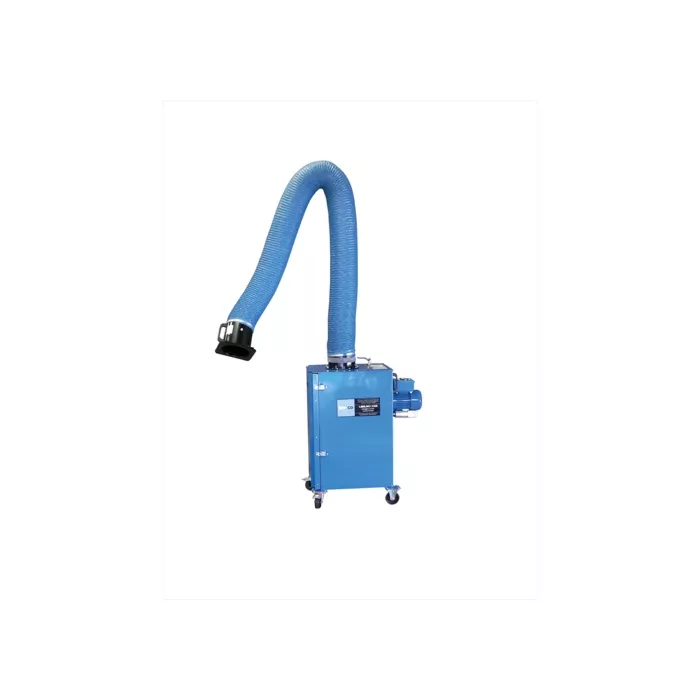

Roll-Flex Portable Filter Unit
- Mobile Filter w/3 m Extraction Arm
- Mobile mechanical filter for welding fumes, grinding dust, etc
- Compact and flexible
- The extraction arm captures fume and dust at a distance of 30-50 cm (12-20'') from the source and within an area of 0.5 m (20'') diameter
- Black hood w/optimized airflow and ring handle and built in damper
- Flame proof PVC hose 160 mm (6.5") diameter
- This unit can also be fitted with an activated carbon filter which removes gases from polluted air; CONSTRUCTION:
- Unit made of powder painted steel sheet 16 ga.
- Fan 0,75 kW(1HP), 120 V, 1-phase, 2400 m/hr (1400 CFM) free-blowing
- The unit filters 1250 m/hr (700 CFM) through the hood
- Comes standard with 1-prefilter (spark-trap) and 1 washable (99% spun-bound polyester) cartridge filter (P-160)
- Active filter surface 14 m (150 +ft)
- Delivered complete with ON/OFF starter, cable and plug
- Flameproof 6.5' PVC coated fibreglass hose
- 5-year limited warranty
