Details

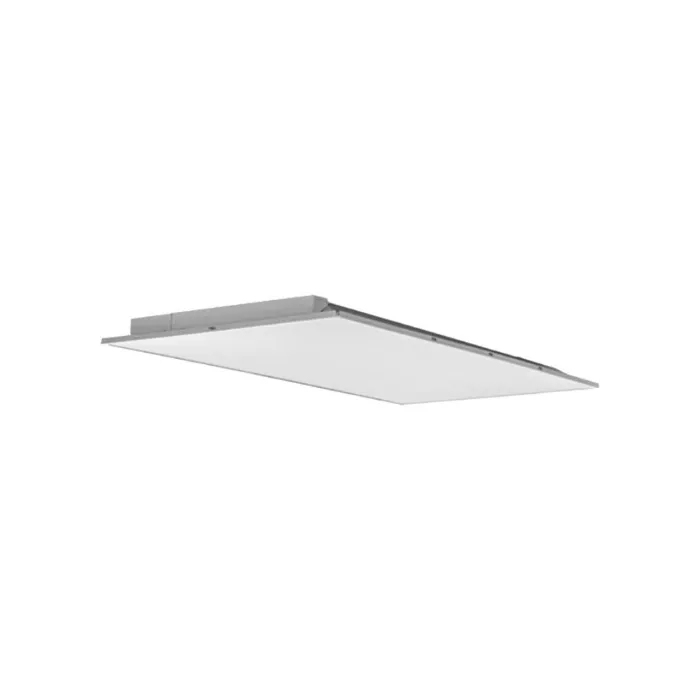

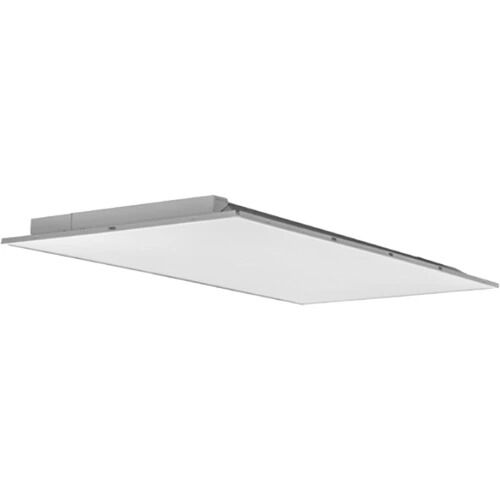

CPX Series Low-Glare Flat Panel
- A low-glare panel featuring an external driver
- Visually comfortable
- Can be recessed mounted
- Suitable for many applications such as schools, offices, retail, convenience stores, hospitals, healthcare facilities and other commercial spaces
- The extruded aluminum frame with satin white lens provides excellent shielding and uniform luminance
- CPX's low-profile design provides increased installation flexibility especially in restricted plenum spaces
- The back plate includes integral T-bar clips for installation into T-grid ceilings
- Direct-lit panel with long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
- Greater than 70% LED lumen maintenance at 60,000 hours (L70>60,000)
- 0-10V dimming driver, dims to 10% and contains non-isolated dimming leads
- CSA certified to meet US and Canadian standards
- IC rated
- IP5X rated
- NOM certified
- Rated for NSF/ANSI Standard 2 - Light Fixture for Splash Zone and Non Food Zone
