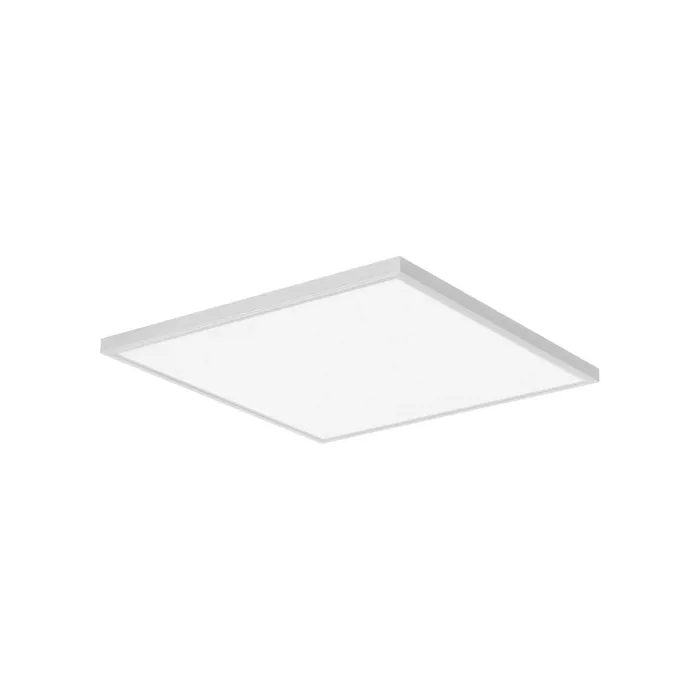

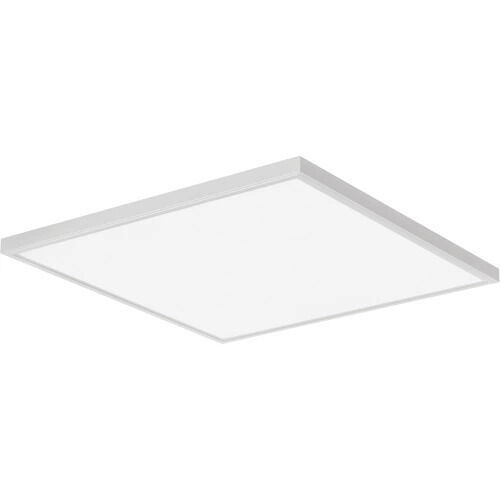

The Lithonia Lighting Lumen Switchable Panel is a 24" x 24" LED flat panel light engineered for reliable, high-performance illumination in commercial environments. Operating at 120 V with a switchable output range of 20 to 89 W, this LED panel combines an internal driver, rigid construction, and flexible mounting options to suit a wide range of indoor lighting needs. Identified by part number 270W2C, it's built for facilities that demand consistent, comfortable light output.
Key Features:
- Construction: Aluminum frame with a deep drawn backplate for strength and durability; seamless frame design prevents light leak in the corners
- Lens: Satin white lens delivers excellent shielding and a fully luminous, visually comfortable appearance
- Mounting Options: Can be recessed, direct ceiling mounted, suspended, or surface box mounted; integral T-bar clips support installation into 9/16" or 15/16" T-grid ceilings, including continuous row mounting and wiring
- Low-Profile Design: Ideal for restricted plenum spaces, offering added installation flexibility
- Performance: Long-life LEDs paired with a high-efficiency driver for extended service life; switch is factory-set to max high lumen output, and staying at this default is recommended for optimal 0-10V dimming performance
- Certifications & Ratings: CSA certified to meet US and Canadian standards; damp location listed, IC rated, IP5X rated; intended for indoor use only
- Dimensions: 24" x 24" panel, wattage switchable from 20 to 89 W, operating at 120 V
Ideal For:
- Schools and educational facilities
- Offices and retail spaces
- Convenience stores
- Hospitals and healthcare facilities
Frequently Asked Questions:
Q: Can this panel be used outdoors?
No, the Lithonia Lighting Lumen Switchable Panel is intended for indoor use only.
Q: What ceiling types is this panel compatible with?
It's designed for T-grid ceilings, with integral T-bar clips that fit 9/16" or 15/16" grids, and it also supports recessed, ceiling, surface box, or suspended mounting.
Q: Does the wattage change how the light performs?
Yes, the panel is switchable between 20 W and 89 W; it ships set to the max high lumen output, and staying at this factory default is recommended for the best 0-10V dimming performance.
