Details

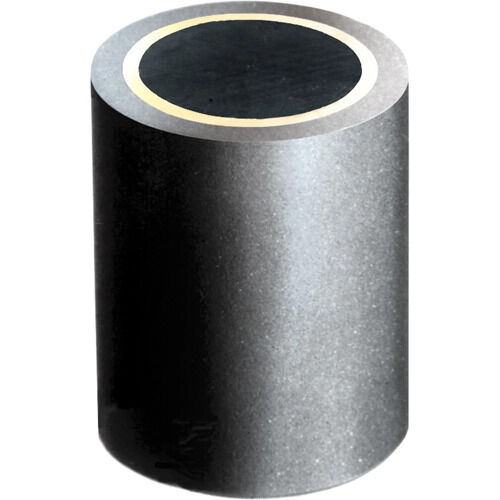

Cylindrical Fixture Magnet Assemblies
- A: Rare earth neodymium 1-pole magnet in an aluminum insulated cup. Can be press fit or use tapped hole for mounting. +/- 0.003" dia. And 0.015" length. Maximum temperature 94°C (200°F). B: Rare earth neodymium island 2-pole magnet in a steel cup. Ideal for shallow fixtures. Tapped hole for mounting. +/- 0.005" dia. And +/- 0.015" length. Maximum temperature 94°C (200°F). C: Rare earth neodymium parallel 2-pole magnet in a brass insulated cup. Ideal for metric press fit applications. +/- 0.002" diameter & length. Maximum temperature 94°C (200°F). D: Rare earth samarium cobalt parallel 2-pole magnet in a brass insulated cup. Ideal for high heat metric press fit applications. +/- 0.002" diameter and length. Maximum temperature 200°C (392°F).
