Details

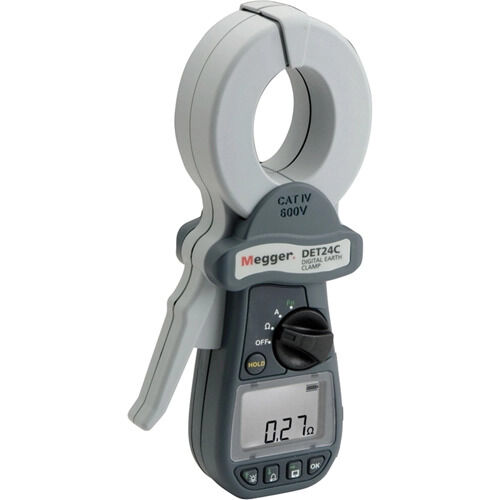

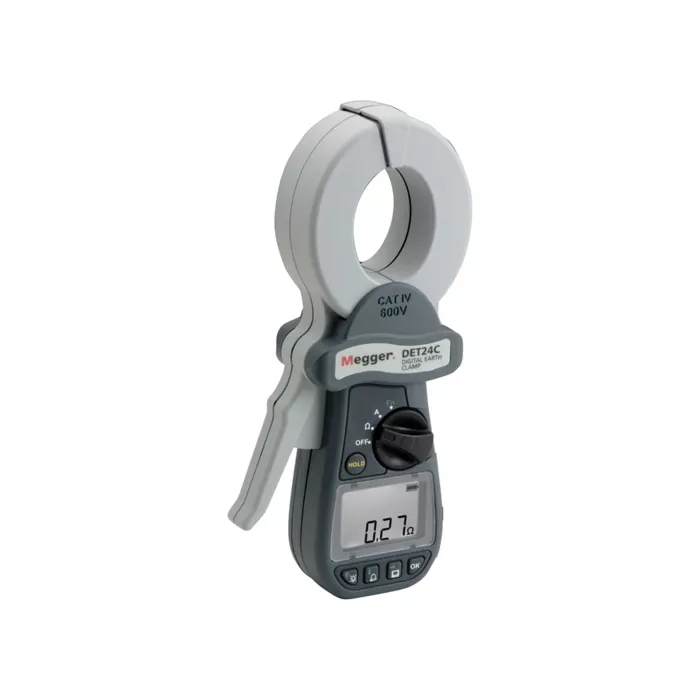

Ground Resistance Testers
- Measures ground resistance from 0.025 Ω to 1550 Ω
- Measures ground leakage current form 0.2 mA to 35 A
- Induces test current into system without disturbing existing connections
- True RMS current measurement facility
- Automatic self calibration
- Auto ranging
- Auto power off (configurable)
- Configurable high and low alarms with audible indication
- Indication of high noise content that may affect readings
- On-board storage of test results
- Hold function
- Over current protected
- Accommodates conductors up to 1.37" (35 mm) in diameter
- RS232 interface
- Complete with heavy-duty carrying case, multi-value resistance calibration check loop, download cable and Download Manager driver
- Ground Resistance Tester
