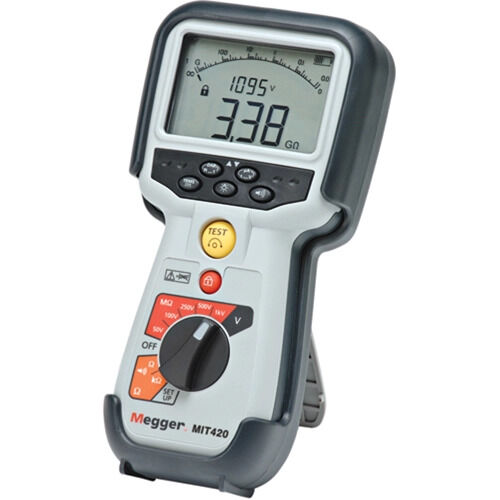

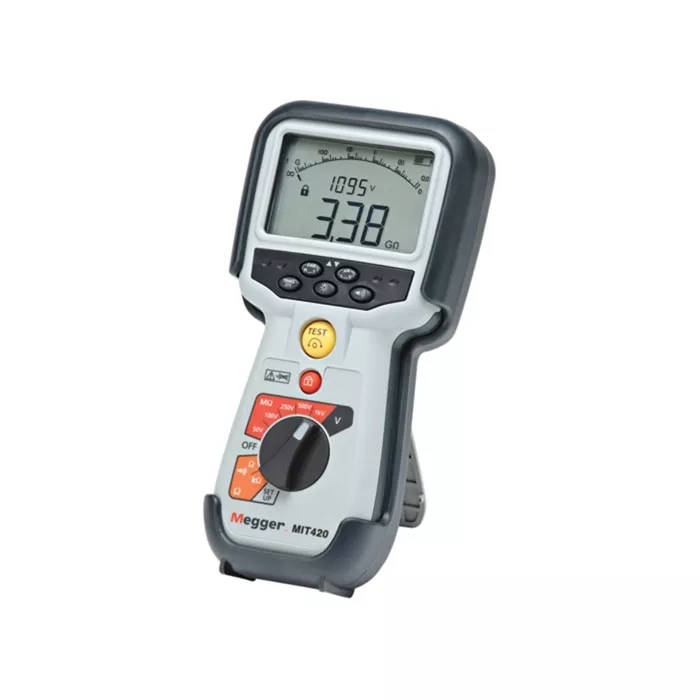

Megger Insulation Tester, Analogue/Digital (1004-739)

Name: Megger Insulation Tester, Analogue/Digital (1004-739)
Brand: Megger
SKU: IA811
Price: 1569.75 CAD
Availability: InStock

SKU: IA811

Mfr. P/N: 1004-739

Your Price

$1,569.75

Availability: In Stock

This product ships within 2 - 4 weeks (Special Order)

Details

More Info

Returns

Details

Insulation Tester

Features a variable range to allow any intermediate voltage from 10 V to 1000 V in 1 V steps, when testing specific test voltages that do not appear in the standard ranges is required
Functions such as PI (Polarisation Index) and DAR (Dielectric Absorption Ratio), capacitance measurement and a greater range of test voltages increase the suitability for many applications
Designed for electrical and industrial testing
Stabilised insulation test voltage
Test result storage of up to 1000 test results
Live circuit detection and protection
Over-moulded for increased protection
IP54 weatherproof rating
Battery life of approximately 3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 1000 V into 1 MΩ
60 second countdown timer
Default set up to single polarity, configurable to dual polarity
Meets Category IV 600V standards
Included: (1) Insulation tester, (1) SP5 Remote switch probe, (1) Set of red/black silicone test leads with probes & clips, (1) Hard carrying case, (6) AA Alkaline batteries, (1) Information CD

Manufacturer Part Number	1004-739
Brands	Megger
Select Case Size	Each
Capacitance Accuracy	± 5.0% ± 2 digits (0.1 nF - 1 nF unspecified)
Volt Range Accuracy	AC ( ±2% ±1 digit ) & DC ( ±2% ±2 digit )
Voltage Range (DC)	0 - 600 V
Voltage Range (AC)	10 mV - 600 V TRMS sinusoidal (15 - 400 Hz)
Continuity Measurement	0.01 Ω - 999 kΩ (0 - 1000 kΩ on Analogue Scale)
Insulation Accuracy	50 Volts (10 GΩ ± 2% ± 2 digits ± 4.0% per GΩ), 100 Volts (20 GΩ ± 2% ± 2 digits ± 2.0% per GΩ), 250 Volts (50 GΩ ± 2% ± 2 digits ± 0.8% per GΩ), 500 Volts (100 GΩ ± 2% ± 2 digits ± 0.4% per GΩ), 1000 Volts (200 GΩ ± 2% ± 2 digits ± 0.2% per GΩ)
Nominal Test Voltages	50 V, 100 V, 250 V, 500 V, 1000 V
Display Type	Analogue/Digital
Capacitance Range	1 nF - 10 μF
Operating Temperature Range	-10 - 55 °C
