Details

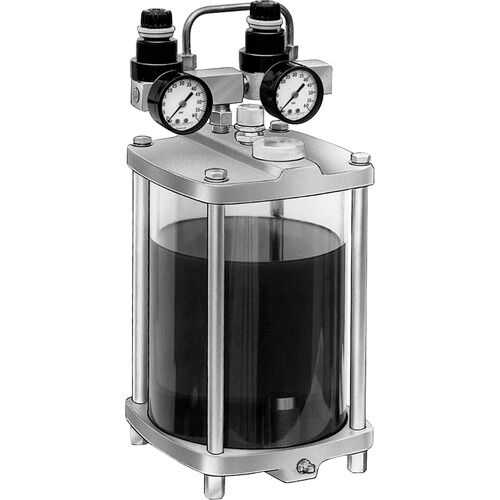

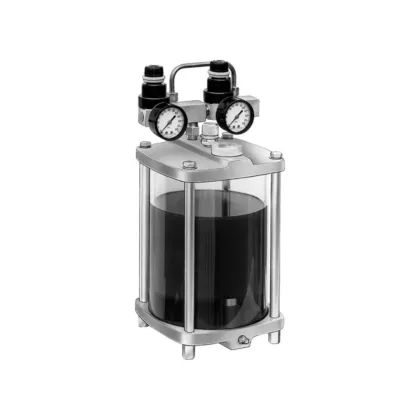

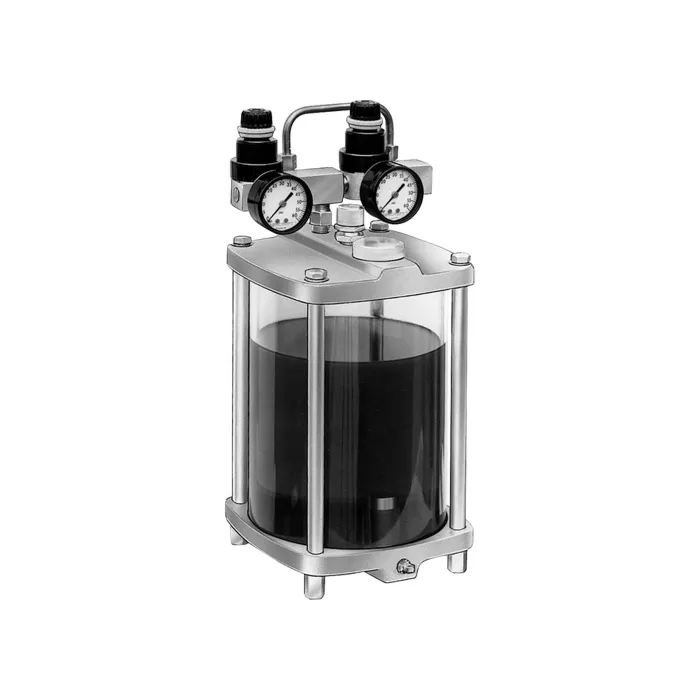

Air Operated Spray Dispensers
- Pressure: 30 PSI maximum
- Temperature: 160°F maximum
- Air capacity: 5 CFM @ 20 PSI
- Liquid capacity: 3 GPH @ 10 PSI
- Components: External mounted
- Maximum spray valves: Four
- Reservoir: Clear acrylic
- Seals: Buna-N
- Covers: Aluminum alloy
- Air operated spray dispensers feed liquid to elevated, distant, or inaccessible points
- The amount of liquid sprayed is infinitely adjustable from a fine spray, invisible to the eye, to a coarse spray by adjusting the air pressure of the needle valve on the spray nozzle
- Any liquid that flows can usually be sprayed, up to 1000 SSU viscosity at 100°F
- For best performance, a second regulator with suitable air capacity is supplied to adjust the air pressure to spray valves
- Operation can be made automatic with two solenoid valves which can be activated by a motor drive or with a timer, allowing the valves to continually or momentarily apply a film of liquid
