Hinge Butt Template Kit
- Offers a quick, simple and accurate solution when hanging multiple doors
- Provides the capacity to hang both 3 and 4 hinge doors
- 3-hinge template set up enables the routing of hinges on doors and frames between 6' and 7' in height
- 4-hinge template set up enables the routing of hinges on doors and frames between 7' and 8' in height
- Accommodates hinge sizes from 3" to 6", in 1/2" increments
- Accommodates doors of 1-3/8", 1-3/4", 2", 2-1/4", and 2-1/2" thicknesses
- Corner chisel accommodates square hinge corners
- End gauges enable the simple setting of the distance from template to top and bottom of door
- Carbide-tipped router bit and template guide included for 1/4" radius hinges

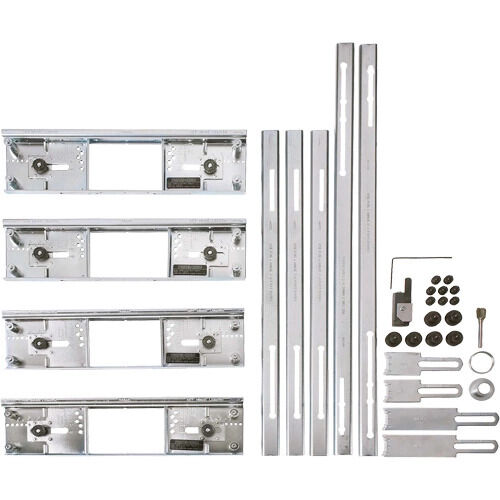

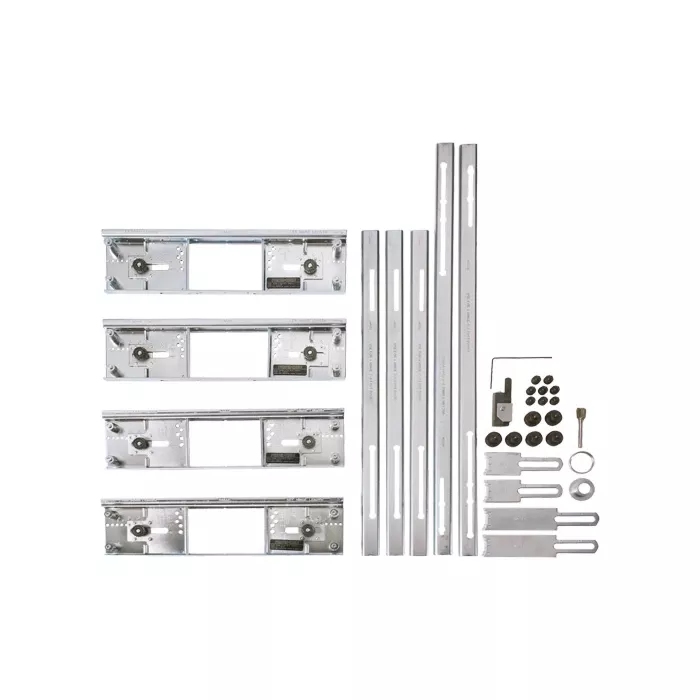

- Includes: (4) Metal hinge templates, (3) Short steel rails, (2) Long steel rails, (1) Carbide-tipped router bit, (1) Template guide, (1) Lock nut, (1) Corner chisel, (2) Pairs of end gauges, (8) Small thumb screws, (6) Large thumb screws, (1) Hex key, (1) Instruction sheet, (1) Carrying case
