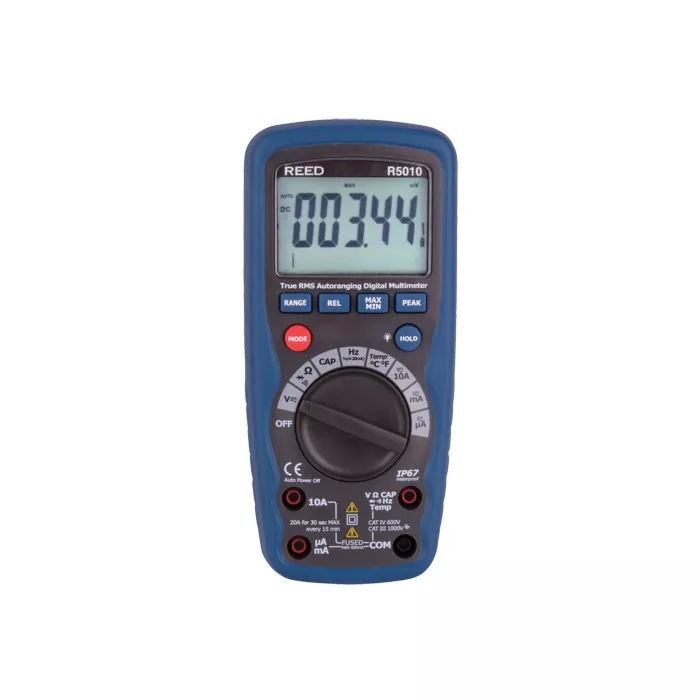

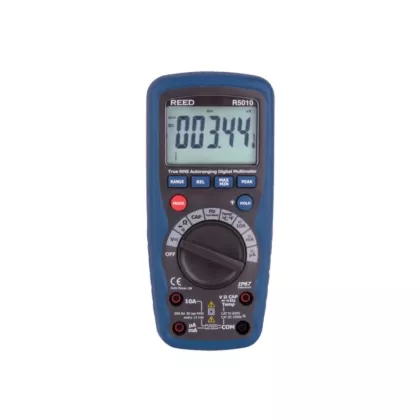

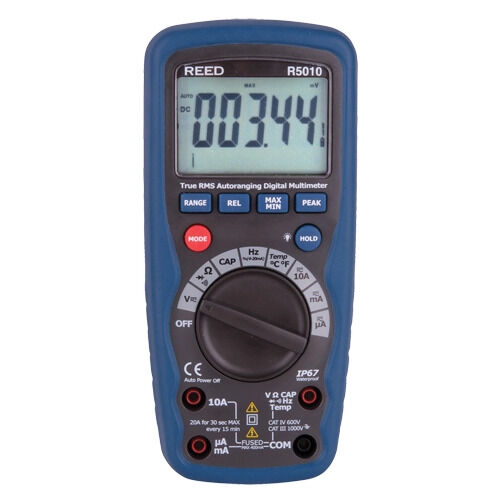

Digital Multimeters
- 0.05% basic DC accuracy
- 40 000-count resolution
- Measures frequency, capacitance and temperature
- True RMS AC/DC voltage and current measurements
- Diode check and continuity test
- Backlit LCD readout with analog bar graph
- 1000 V input protection on all ranges
- 4-20 mA process loop measurements with % readout
- Data hold, Max/Min recording mode
- Peak capture mode
- IP67 dust and waterproof
- EN61010-1 Cat. IV 600 V, Cat. III 1000 V safety rating
- Includes test leads and 9 V battery
More Info
| Manufacturer Part Number |
R5010 |
| Brands |
REED INSTRUMENTS |
| Select Case Size |
Each |
| Frequency Accuracy |
±0.1% |
| Resistance Accuracy |
±0.3% |
| AC/DC Voltage Range |
1000 V |
| Voltage Accuracy |
AC ±1.0%, DC ±0.05% |
| Current Accuracy |
AC ±1.5%, DC ±1.0% |
| AC/DC Current Range |
10 A |
| Resistance Range |
40 MΩ |
| Voltage Readings |
AC/DC |
| Current Readings |
AC/DC |
| Capacitance Range |
40 mF |
