Details

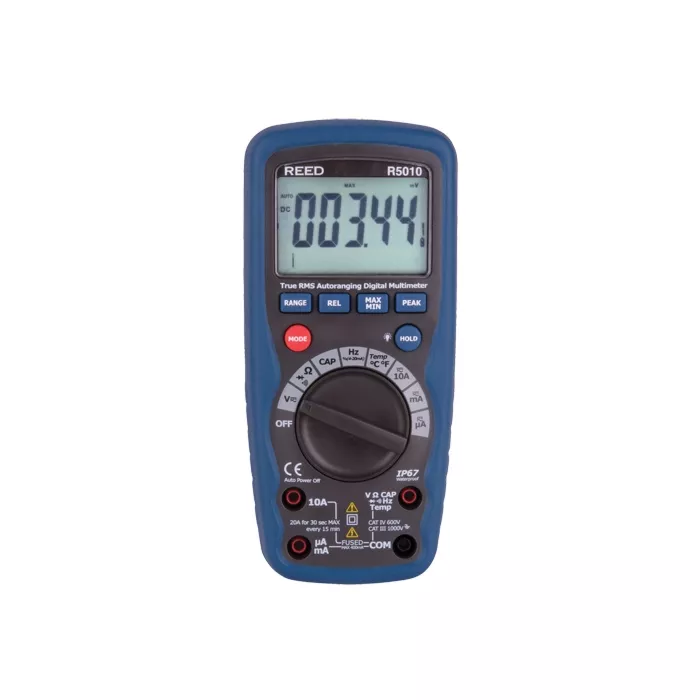

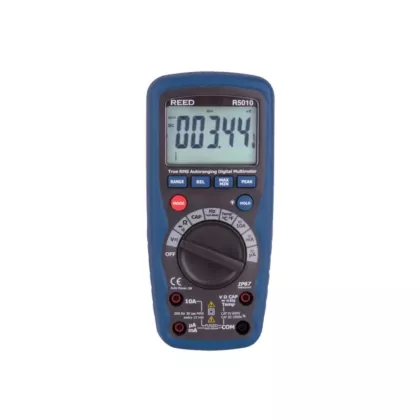

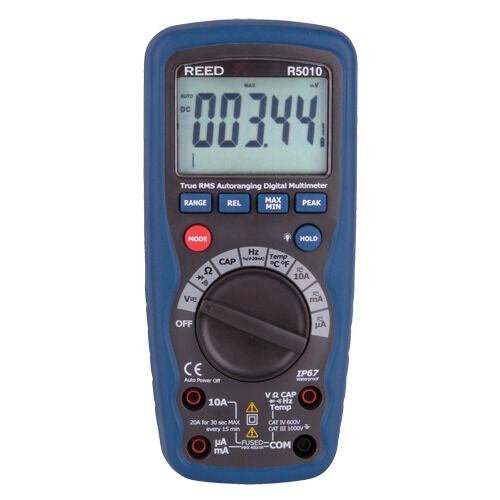

The Reed Instruments R5010-NIST Digital Multimeter is a professional-grade AC/DC multimeter built for electricians and technicians who need precise, reliable readings backed by an ISO calibration certificate. With true RMS AC/DC voltage and current measurement plus a rugged IP67 dust and waterproof housing, this digital multimeter handles demanding field and industrial environments with ease.
Key Features:
- Accuracy: 0.05% basic DC accuracy with 40,000-count resolution
- Measurement Range: AC/DC voltage up to 1000 V (AC ±1.0%, DC ±0.05%) and AC/DC current up to 10 A (AC ±1.5%, DC ±1.0%)
- Additional Functions: Measures resistance (40 MΩ, ±0.3%), frequency (10 MHz, ±0.1%), capacitance (40 mF, ±3.5%), duty cycle (99.9%, ±1.2%), and temperature (760°C/1400°F, ±1.0%)
- Display: Backlit LCD readout with analog bar graph for fast reading in low light
- Safety Rating: 1000 V input protection on all ranges; EN61010-1 Cat. IV 600 V, Cat. III 1000 V rated
- Extra Modes: Diode check, continuity test, data hold, Max/Min recording, peak capture, and 4-20 mA process loop measurement with % readout
- Durability: IP67 dust and waterproof construction
- Dimensions & Weight: 182 x 82 x 55 mm, 360 g
- Included Accessories: Test leads and 9 V battery
Ideal For:
- Electricians requiring certified accuracy for regulated inspections
- Industrial technicians working in wet or dusty environments
- HVAC and process control professionals needing 4-20 mA loop testing
- Facilities maintenance teams performing routine electrical diagnostics
Frequently Asked Questions:
Q: Does the R5010-NIST come with a calibration certificate?
Yes, it includes an ISO calibration certificate, confirming measurement accuracy out of the box.
Q: Is this multimeter safe to use outdoors or in wet conditions?
Yes, the IP67 rating protects against dust and water, making it suitable for outdoor and industrial use.
Q: What safety category rating does this multimeter meet?
It meets EN61010-1 Cat. IV 600 V and Cat. III 1000 V safety standards, suitable for high-energy electrical environments.
Backed by certified accuracy and rugged construction, the Reed R5010-NIST digital multimeter is a dependable choice for professionals who can't afford measurement error.
