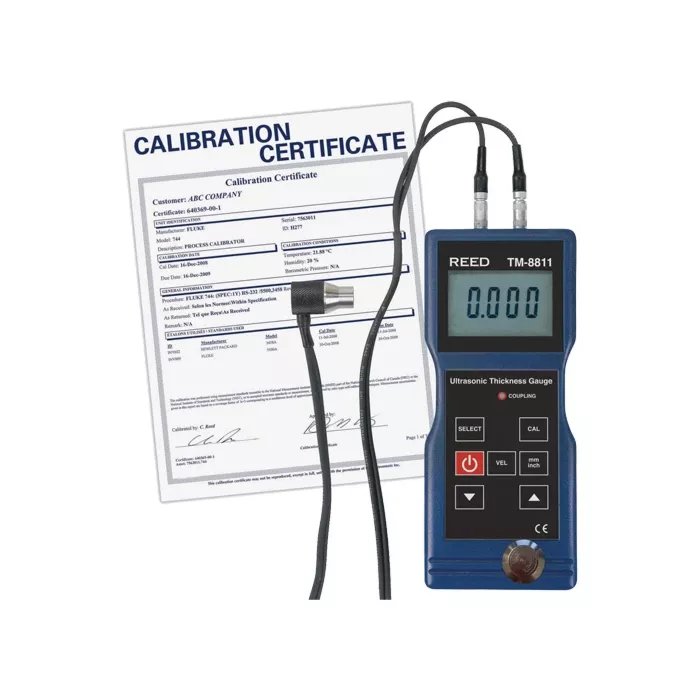

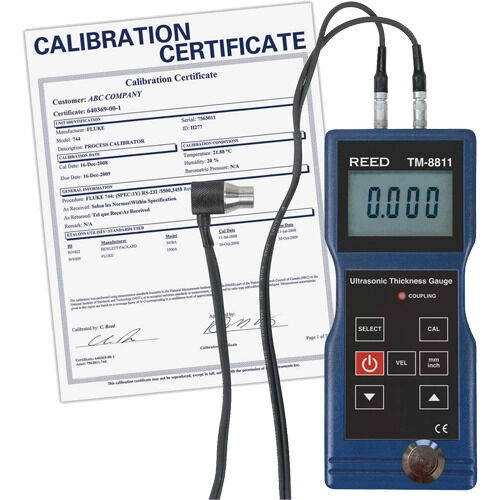

The Reed Instruments TM-8811-NIST Digital Ultrasonic Thickness Gauge is a precision measuring tool built for technicians and inspectors who need fast, accurate material thickness readings. Supplied with an ISO certificate, this thickness gauge uses ultrasonic sound velocity to measure a wide range of materials without cutting or damaging the surface being tested.
Key Features:
- Measuring Range: 0.05" to 7.9" (1.5 mm to 200 mm) in #45 steel
- Velocity Range: 500 to 9000 m/s
- Accuracy: Exclusive micro-computer LSI circuit and crystal time base for high-precision readings
- Digital Display: Clear readout eliminates guesswork and reduces reading errors
- Broad Band Receiving Sensitivity: Reads probes across different frequencies
- Auto Calibration: Automatic material calibration with selectable metric or imperial units
- Material Versatility: Measures steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron
- Sound Velocity Display: View material sound velocity at the touch of a button
- Certification: Includes ISO calibration certificate
Ideal For:
- Metal fabrication and quality control inspection
- Corrosion and wall-thickness monitoring on pipes and tanks
- Manufacturing plants requiring calibrated, non-destructive testing equipment
Frequently Asked Questions:
Q: What thickness range can this gauge measure?
It measures from 0.05" to 7.9" (1.5 mm to 200 mm) in #45 steel, with a sound velocity range of 500 to 9000 m/s.
Q: Does it come with calibration documentation?
Yes, the Reed TM-8811-NIST includes an ISO certificate confirming its calibration.
Q: What materials can I test with this gauge?
It's suited for steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron.
With its digital display and broad-frequency probe compatibility, the TM-8811-NIST thickness gauge delivers reliable, repeatable readings across a wide range of industrial materials.
