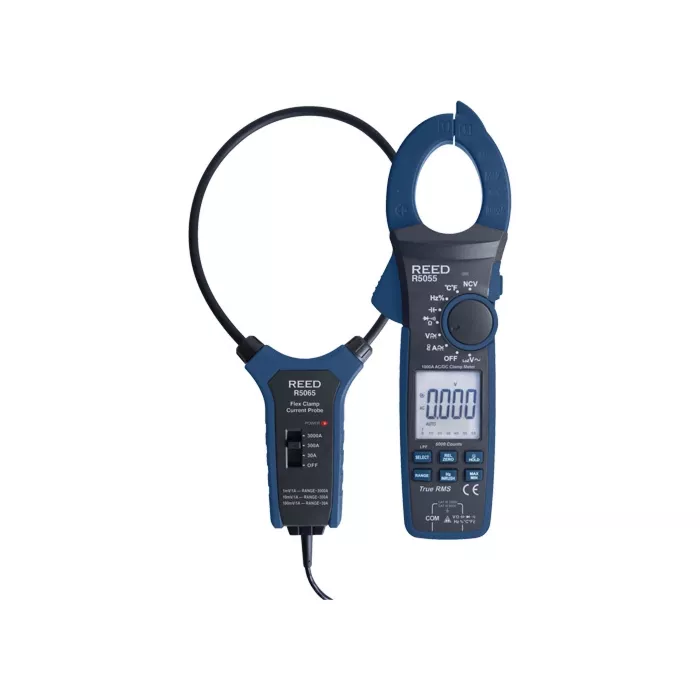

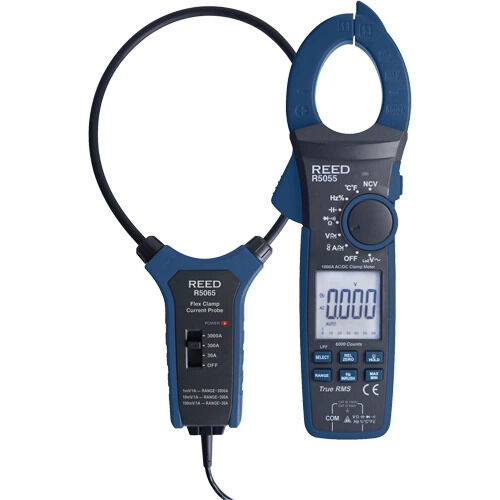

True RMS Clamp Meter with Flexible Current Probe & ISO Certificate
- Measures AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, and contact temperature
- Comes equipped with an 18" flexible current probe that can expand AC current measurements up to 3000A
- 6000-Count backlit LCD display and analog bargraph plus built-in non-contact voltage detector with LED indicator
- Ergonomic design fits in your hand and can be used while wearing protective gloves and only weighs 15.8oz (447g)
- Built-in LED flashlight, durable double molded plastic housing, and low battery and over range indicators
- True RMS voltage and current for accurate measurements
- Low pass filter and low impedance (LoZ) modes
- Min/Max, display hold and relative mode
- Diode test and continuity check functions
- Cat. III 1000V, Cat. IV 600V safety rating
- Operating temperature of 32 to 122°F (0 to 50°C) and a storage temperature of 14 to 140°F (-10 to 60°C)
- Runs on 3 x AAA batteries and features an autoshut-off after 15 minutes
- CE and ETL product certifications
- AC/DC voltage range: 6, 60, 600, 1000V (AC), 600mV, 6, 60, 600, 1000V (DC)
- AC/DC voltage accuracy: ±(1.0% rdg. +8 dgt.) (AC), ±(0.5% rdg. +5 dgt.) (DC)
- AC/DC voltage resolution: 0.1mV, 0.001V, 0.01V, 0.1V, 1V
- Includes: REED 1000A True RMS digital clamp meter (R5055), REED 3000A Flexible 18" current probe (R5065), ISO Certificate with full data and uncertainties
