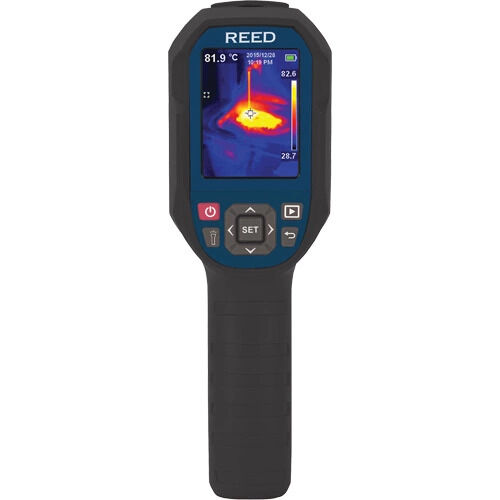

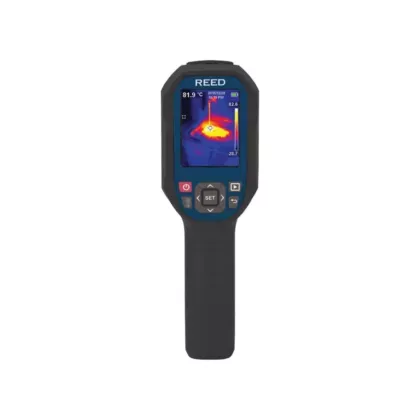

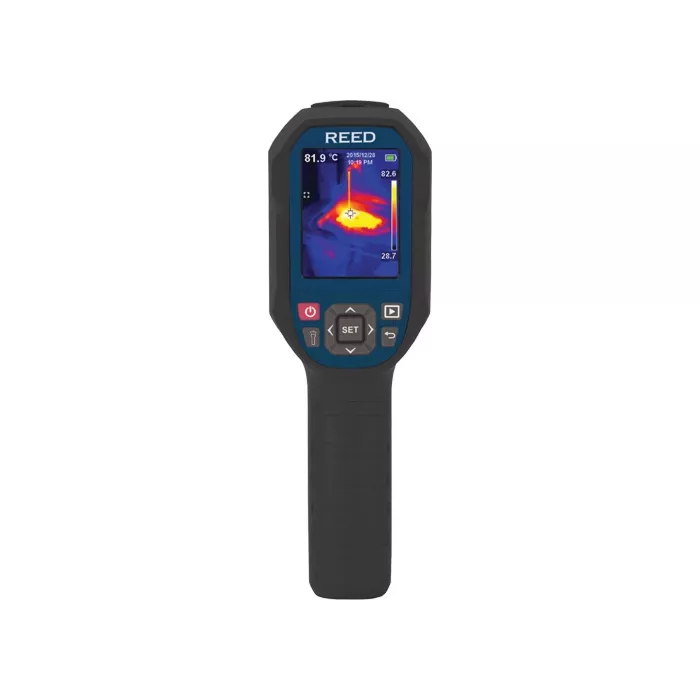

Thermal Imaging Camera
- Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity
- has the ability to display hot and cold spot temperatures on a 2.8" color LCD and allows a user to choose from 7 different color palettes
- The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC
- 2.8" color TFT display
- Built-in LED flashlight
- 7 colour palettes (Ironbow/Rainbow/Rainbow(HC)/Lava/Red-Hot/White-Hot/Black-Hot)
- Intuitive on-screen measurement tools
- 3 image modes (Thermal, Visual Image, Thermal Blending)
- High and Low-temperature spot and alarm indicators
- IP65 and 6.5' (2m) drop tested
- Rechargeable Li-ion battery
- Tripod mountable for continuous long-term monitoring
- View, analyze stored data, and generate reports or projects in real-time
- Low battery indication and auto shut-off
More Info
| Manufacturer Part Number |
R2165 |
| Brands |
REED INSTRUMENTS |
| Select Case Size |
Each |
| Dimensions |
2,8" |
| Manufacturer's Warranty |
1 Year |
| Emissivity |
Adjustable (0.01 to 0.99) |
| Temperature Range |
-10° - 400°C (14° - 752°F) |
| Display Type |
Intégré/Ordinateur Windows |
| Resolution |
160 x 120 pixels |
| Display Size |
2.8" |
| Thermal Sensitivity |
50 mK |
| Field of View (FOV) |
56 x 42° |
| Optimal Focal Distance |
0.82' (0.25m) |
| Image Capture Frequency |
9Hz |
| Detector Type |
Uncooled microbolometer, Focal plane array (UFPA) |
| Spectral Range |
8 to 14µm |
| Digital Camera Resolution |
640 x 480 pixels |
| Includes |
Caméra thermique, câble USB, carte micro SD 32 GB, étui de transport souple |
