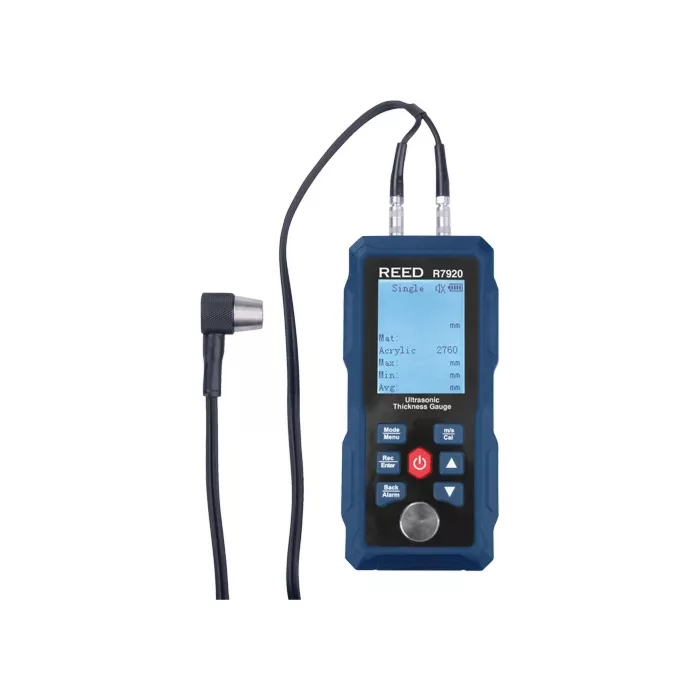

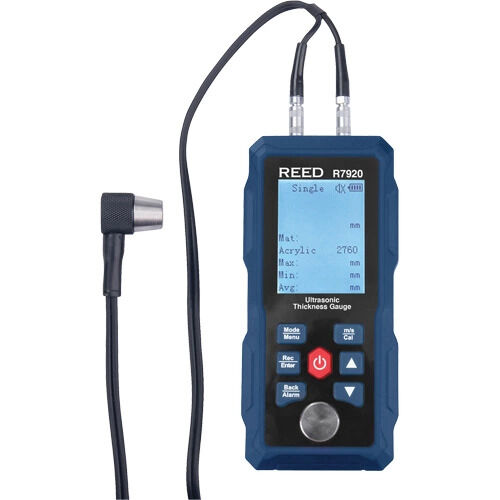

A portable device used for non-destructive measurement of the thickness of metal and other materials
Uses high-frequency sound waves to determine the thickness of a material by measuring the time it takes for the sound waves to travel from the gauge to the material and back
Easy-to-read backlit LCD display
User-selectable units of measure (in/mm)
Internal memory stores up to 300 measurements
Displays sound velocity at the touch of a button
User-adjustable High/Low alarms
Automatic material calibration
Auto shut-off and low battery indicator
Suitable for use by technicians and inspectors in a variety of industries
More Info
Manufacturer Part Number
R7920
Brands
REED INSTRUMENTS
Select Case Size
Each
Dimensions
0,04" - 11,8" (1 mm - 300 mm)
Manufacturer's Warranty
1 Year
Resolution
0.1mm/0.01mm/0.01"
Display
Numérique
Probe Length
3' (91cm)
Measuring Mode
Ultrasound
Thickness Range
0.04" - 11.8" (1 mm - 300 mm)
Velocity Range
1000 to 9999m/s (0.039 to 0.394in/µs)
Compatible Materials
Steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron
Probe Diameter
0.5" (12.7mm)
Includes
Jauge d'épaisseur ultrasonique, gel couplant à ultrasons, sonde, câble USB, étui de transport
