Details
Clamps for Round or Square Work

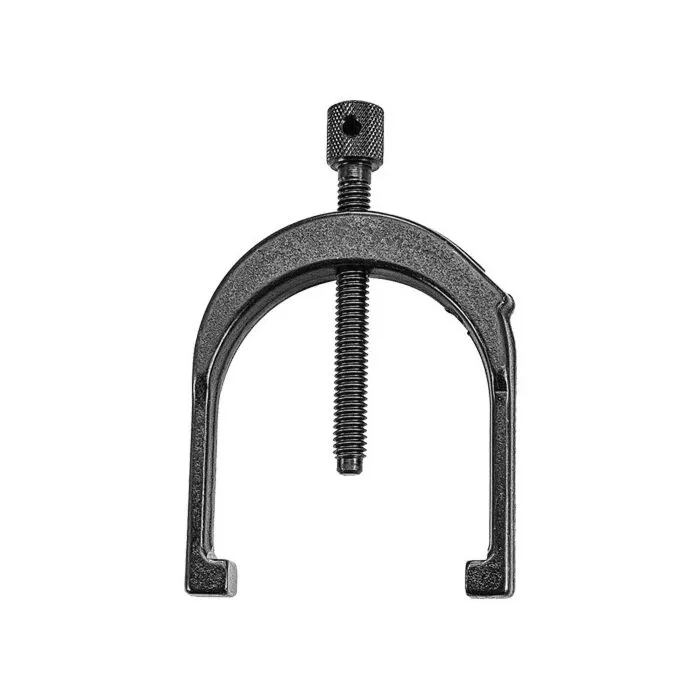

- Clamp Only
- Hardened steel, precision ground parallel and square
- V-grooves are ground central and parallel to the sides and base - perfect alignment in matched pairs
- Clamps have screw holes at 45° and 90° to hold either square or round work
- Clamps do not project over the width of the block, permitting it to be used on the base, ends or sides
- 3/8-16 tapped holes permit mounting blocks on faceplates or angle irons
- Each block is 2 1/2" long x 3" wide x 2" high (63 x 75 x 50 mm)
- Capacity: 2" (50 mm) Dia. Round; 1 7/16" (36 mm) Square (1 9/16" [40 mm] with Screw at Top)
