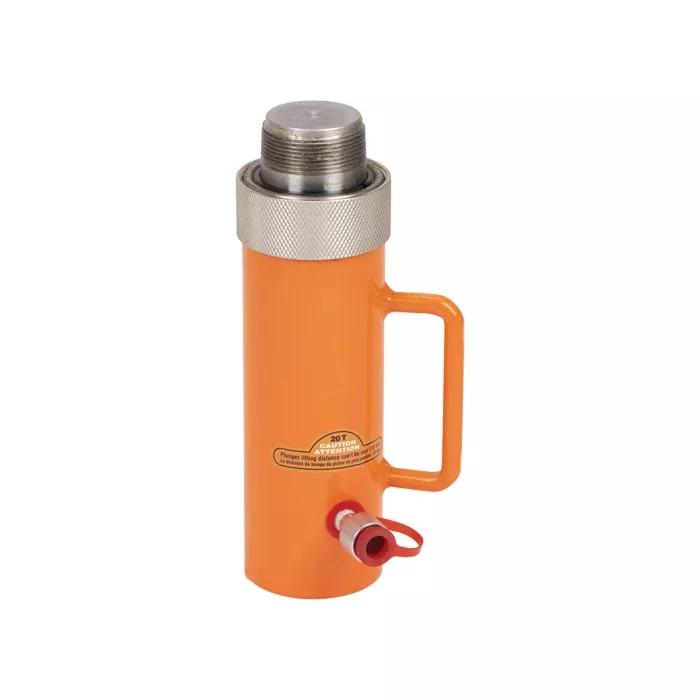

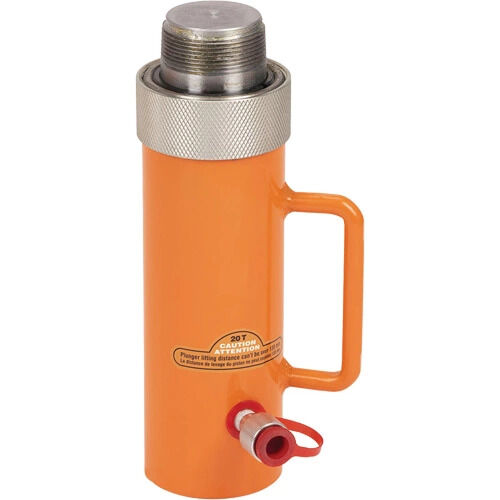

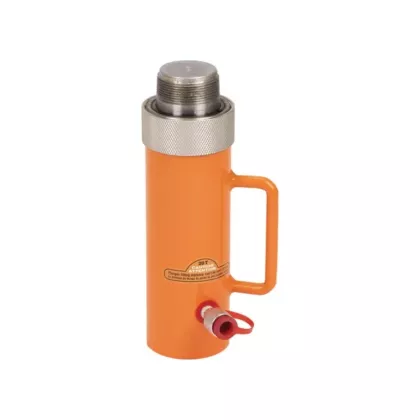

Hydraulic Rams
- For use in high-force applications including lifting, pulling, pushing, bending, and alignment
- Made with professional-grade material and designed to provide years of trouble-free service for a wide range of applications
- Available in a variety of styles that can be used with Strongarm® and other body and frame repair kits
- Integrated built-in oil-bypass and overload valve protects the hydraulic system from accidental overload
- Ideal for industrial and construction markets, vehicle service facilities, agriculture, and more
More Info
| Manufacturer Part Number |
030336 |
| Brands |
Strongarm |
| Select Case Size |
Each |
| Stroke Length |
5.04"" |
| Effective Area (in²) |
5.14 |
| Extension Tubes Length (mm/in.) |
28.34mm / 1.1""|50mm / 2""|100.39mm / 4.0""|200mm / 7.9""|275.59mm / 10.9"" |
| Diameter - Piston (in.) |
2.36 |
| Diameter - Saddle (in.) |
2.13 |
| Oil Capacity (ml) |
425 |
| Dimensions |
11-1/10"" X 16"" X 5,04"" |
| Collapsed height |
11-1/10"" |
| Capacity |
20 Ton(s) |
| Extended Height |
16"" |
