Details
Product Overview

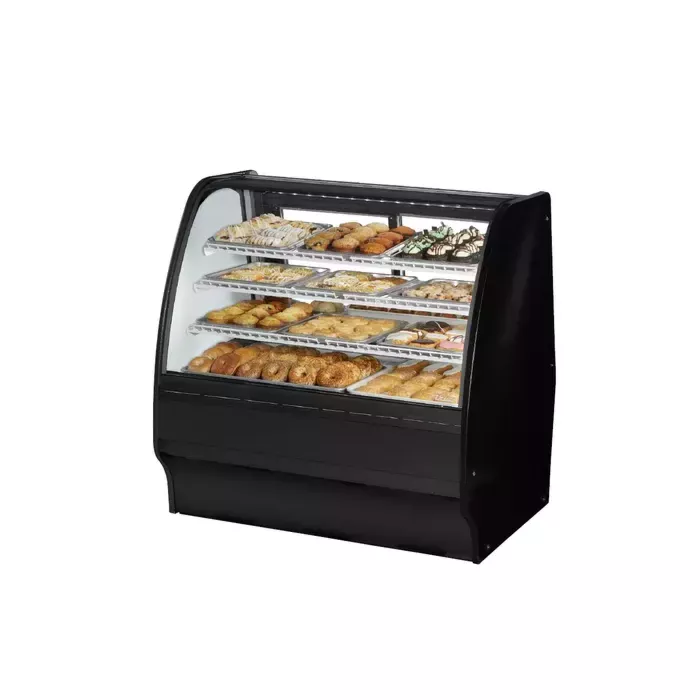

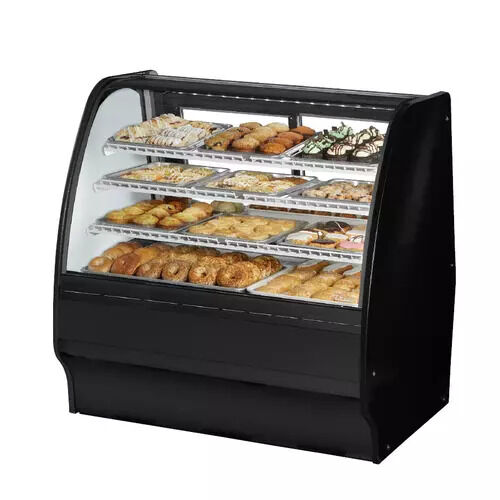

The True 48" Dry Merchandising Display Case with Curved Glass in Black is designed for high-volume merchandising and refrigeration, offering an elegant presentation for deli, desserts, and pastries. Here are the key features and specifications:
Cabinet Construction:
- Exterior: Powder-coated FDA black rounded front and back, solid wood sides with aluminum cover and front panels. Color options available (upcharge may apply) - white or stainless.
- Curved glass front and side glass panels for an attractive presentation.
- Interior: Powder-coated FDA white over CRS material. Color options available (upcharge may apply) - black or stainless.
- Insulation: Foamed-in-place using high-density polyurethane insulation with zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy-duty steel frame rail, black powder-coated for corrosion protection.
- Frame rail fitted with leg levelers.
Curved Front Display Glass:
- Single-pane tempered glass with an extra-large viewing area to maximize product presentation.
Rear Doors:
- Two rear sliding glass doors for back access.
- Each door fitted with a 12" (305 mm) long aluminum handle.
- Sliding doors ride on a stainless steel V-channel with stainless steel bearings. Doors fit within a plastic channel frame.
Shelving:
- Six adjustable heavy-duty PVC-coated wire shelves standard.
- Each shelf supports a maximum weight of 150 lbs. (69 kg).
Pan Capacity:
- Cabinet holds four 18"L x 26"D (458 mm x 661 mm) display pans, two 9"L x 26"D (229 mm x 661 mm) display pans, and six 12"L x 18"D (305 mm x 458 mm) display pans. Pans supplied by others.
Lighting:
- LED interior lighting with two clips underneath the shelf to keep wires in place. Safety shielded.
Model Features:
- NSF/ANSI Standard 2 compliant for open food products.
Electrical:
- Unit completely pre-wired at the factory and ready for the final connection to a 115/60/1 phase, 15 amp dedicated outlet.
