Details

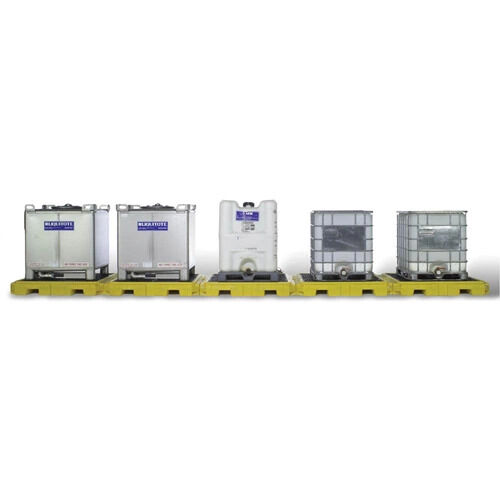

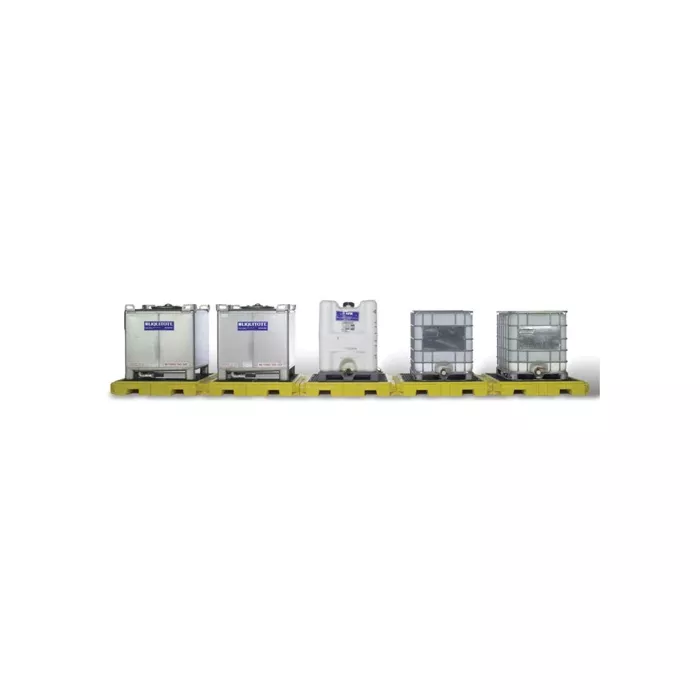

The Ultratech Indoor 5-Tank Ultra-Modular IBC Spill Pallet (model 1128) is a heavy-duty containment system built for facilities storing multiple IBC totes indoors. Measuring 310" x 11" x 62" with a 375 US gallon capacity and 9,000 lbs UDL rating, this modular IBC spill pallet lets you securely stage and contain several tanks side by side while keeping spills fully controlled.
Key Features:
- Load Capacity: Each low-profile spill pallet supports up to 9,000 lbs UDL
- Containment: Each pallet holds 75 gallons; dimensions are 62" x 62" x 8.75"H per unit
- Modular Design: Connect any number of spill pallets together using bulkhead fittings, with two fittings joining each pair of pallets
- Expandable Capacity: Add an optional 65-gallon expansion tank to increase total containment
- Flow-Through Fittings: 1.25-inch diameter bulkhead fittings channel spills between connected pallets and expansion tanks, letting units share containment capacity
- Material: Constructed of 100% polyethylene for corrosion and rust resistance
- Chemical Resistance: Withstands a broad range of substances including acids, solvents, and oils
Ideal For:
- Warehouses and industrial facilities storing multiple IBC totes indoors
- Chemical, oil, and solvent storage areas requiring secondary containment
- Facilities needing scalable spill containment across several connected tanks
Frequently Asked Questions:
Q: Can additional spill pallets be added later?
Yes, the modular design allows any number of spill pallets to be connected using bulkhead fittings as your storage needs grow.
Q: What is the containment capacity per pallet?
Each low-profile spill pallet contains up to 75 gallons, with an optional 65-gallon expansion tank available to increase total capacity.
This modular IBC spill pallet system gives facilities a durable, expandable way to keep indoor IBC tote storage compliant and spill-free.
