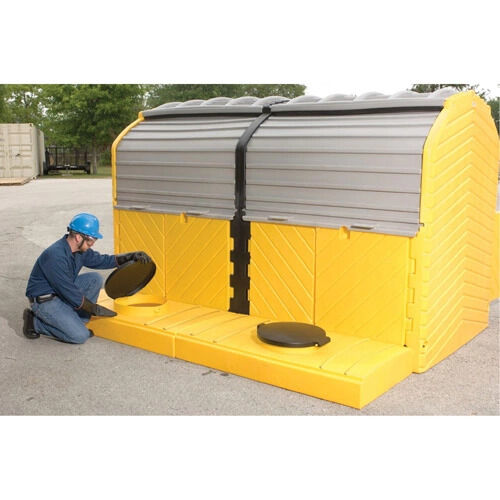

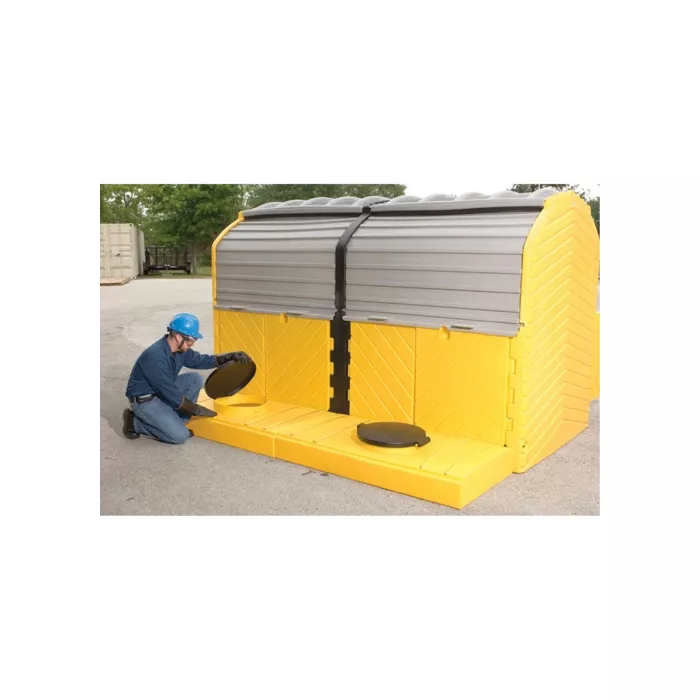

Outdoor 2-Tank Ultra-Modular IBC Spill Pallet
- Each IBC tank sits on a heavy-duty spill pallet with a capacity of 9,000 lbs UDL
- Each of the low profile spill pallets has a containment capacity of 75 gallons and measures 62" x 62" x 8.75”H
- Any number of the modular spill pallets can be connected together with bulkhead fittings. Two (2) bulkhead fittings are used to connect one pallet to the next
- To increase containment capacity, a 65-gallon capacity expansion tank is available
- "Flow-through" bulkhead fittings (1.25-inch diameter) are used to connect spill pallets and expansion tanks together
- Bulkhead fittings allow spills to be channeled throughout the containment system, thereby "borrowing" containment capacity from adjacent spill pallets and expansion tanks
- Constructed of 100% polyethylene, eliminating the potential for rust and corrosion
- They offer excellent chemical resistance to a broad range of chemicals including acids, solvents, and oils
- UV inhibitor in polyethylene (LLDPE) resin resists degrading effects of sunlight, adding years to outdoor service life
