Details

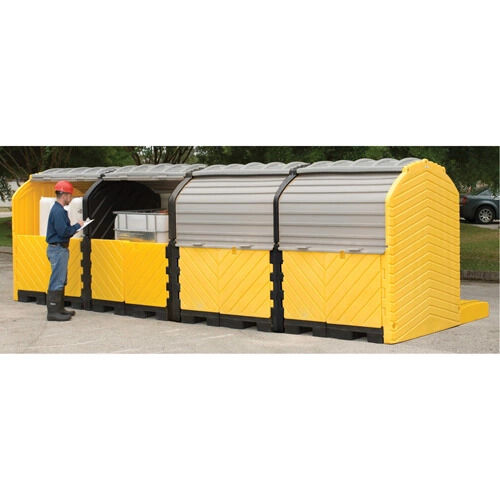

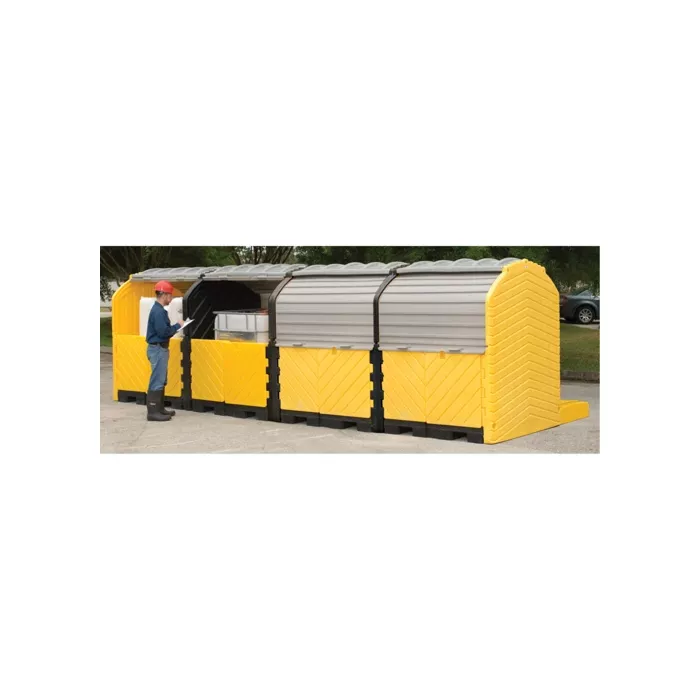

The UltraTech Outdoor 4-Tank Ultra-Modular IBC Spill Pallet is a heavy-duty containment solution built for facilities storing multiple IBC totes outdoors. Measuring 250" x 79" x 93" with a 365 US gallon total containment capacity and a 9,000 lbs uniformly distributed load rating, this IBC spill pallet is designed to keep hazardous liquids contained while supporting the weight of fully loaded tanks in outdoor storage yards.
Key Features:
- Capacity: 365 US gal. total containment, 9,000 lbs UDL rating
- Dimensions: 250" x 79" x 93" overall; each low-profile pallet measures 62" x 62" x 8.75"H with 75-gallon containment capacity
- Modular design: Additional spill pallets can be connected together using bulkhead fittings for expanded configurations
- Bulkhead fittings: 1.25-inch diameter flow-through fittings connect pallets and expansion tanks, letting spills channel across the system and borrow containment capacity from adjacent units
- Expansion option: Optional 65-gallon expansion tank increases overall containment capacity
- Construction: 100% polyethylene body resists rust and corrosion, with strong chemical resistance to acids, solvents, and oils
- UV protection: UV-inhibited LLDPE resin resists sun degradation, extending outdoor service life
Ideal For:
- Outdoor IBC tote storage yards requiring secondary spill containment
- Facilities storing acids, solvents, oils, or other chemicals in bulk totes
- Sites needing scalable, modular containment that can expand as storage needs grow
Frequently Asked Questions:
Q: Can this spill pallet be expanded to hold more IBC totes?
Yes. Additional modular spill pallets connect via bulkhead fittings, and an optional 65-gallon expansion tank can be added to increase total containment capacity.
Q: Is this IBC spill pallet suitable for outdoor use?
Yes. It's constructed of UV-inhibited polyethylene (LLDPE) resin, which resists sun degradation and adds years to its outdoor service life while also resisting rust and corrosion.
This modular IBC spill pallet system lets facilities configure containment to match their exact outdoor storage layout while meeting spill containment requirements for multiple totes.
