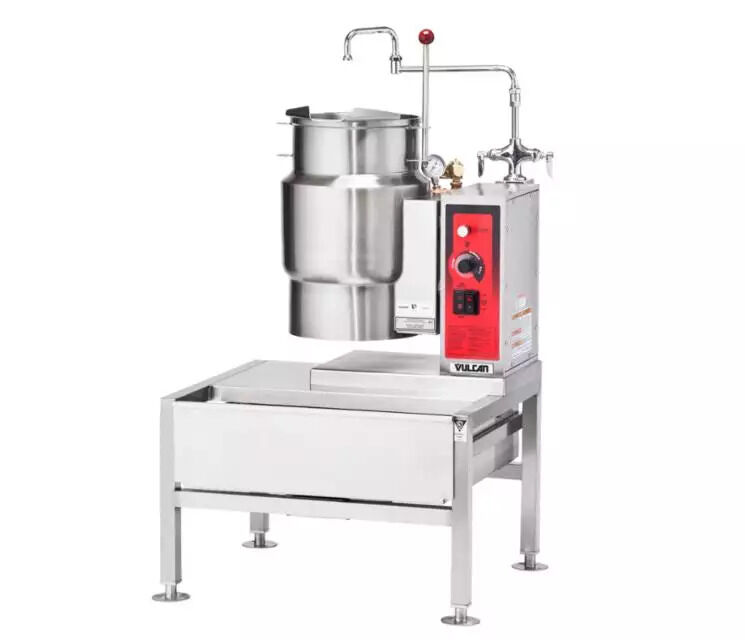

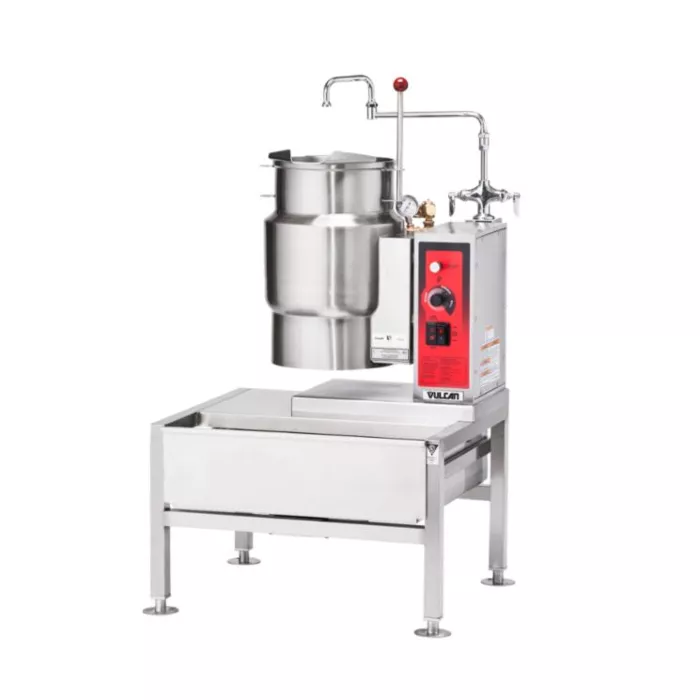

2⁄3 jacketed self-contained electric counter tilting steam kettle. Ellipsoidal bottom kettle liner formed and fully welded type
316 and type 304 stainless steel exterior with 1⁄4 x 5⁄8 inch bar rim with butterfly-shaped pouring lip and embossed gallon/liter markings, designed to operate at a maximum of 50 psi (3.4 kg/cm2).
Jacket contains water, rust inhibitor, and antifreeze mixed to protect to 30° below zero.
Removable electric elements are field serviceable.
Stainless steel tilt handle can be mounted on either the right or left. Two-position tilt lock, upright, 100° for emptying and cleaning.
Stainless steel water-tight control housing is located on the right. Controls include a power switch, indicator light, solid state temperature control, vacuum/pressure gauge, pressure relief valve, low water light, and low water shut-off.
Faucet bracket.
Mounting base includes lugs for bolting to the countertop or floor stand.
Shipped for 208/60-50/3 electrical service. Can be field converted to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.
