Details

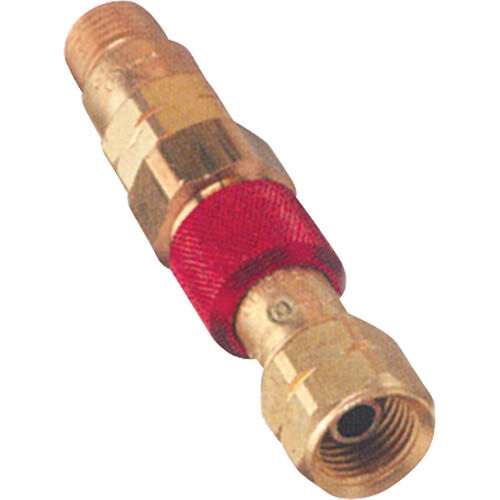

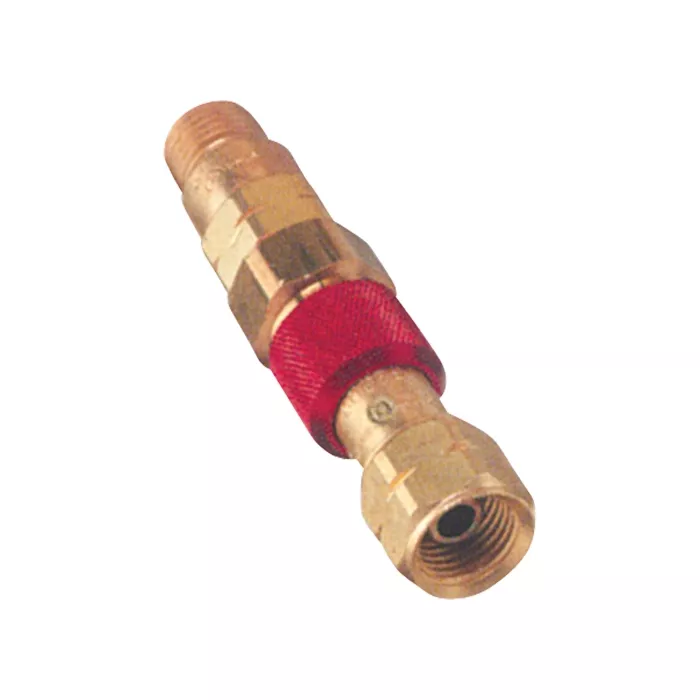

Quick-Connects For Welding Equipment - Individual Units
- Fuel Gas w/Check Valve
- QUICK-CONNECTS INDIVIDUAL UNITS
- Brass construction provides long service life- cycle tested over 10 000 operations indicating a service life of 10 to 12 years of comparable use
- Non-interchangeable Oxygen and Fuel Gas connectors prevent accidental gas mixing
- Instant closure on reverse flow Check Valves with total shutoff at only 10 oz. of back pressure
- Exceed CGA flow specifications-1100 SCFH flow at 125 PSIG inlet pressure and 800 SCFH flow at 125 PSIG inlet pressure when two additional check valves are used in conjunction with the Quick-Connects
- Spring loaded locking mechanism responds to fingertip action and achieves a gas-tight connection
- For inert gas models, demand valve on supply side creates a positive seal when fitting is not connected
- Double seal socket connection on second seal provides added safety protection
- 200 PSIG maximum operating pressure
