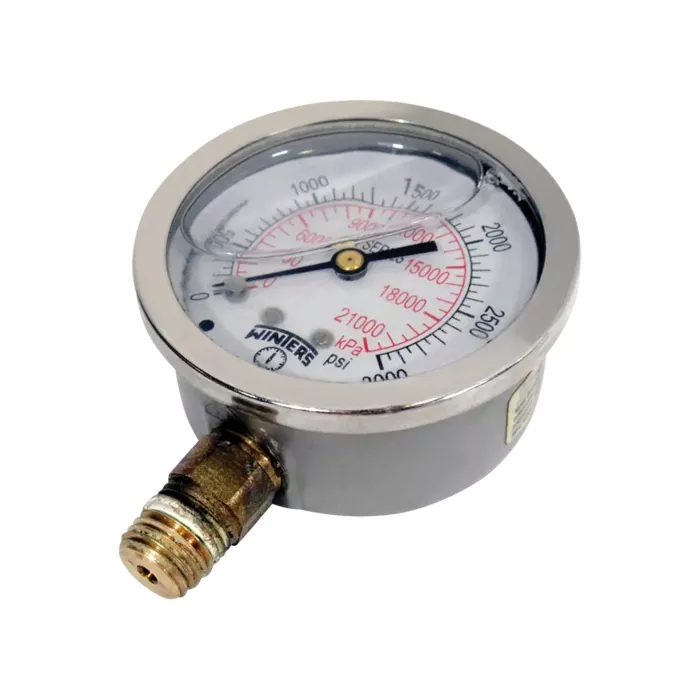

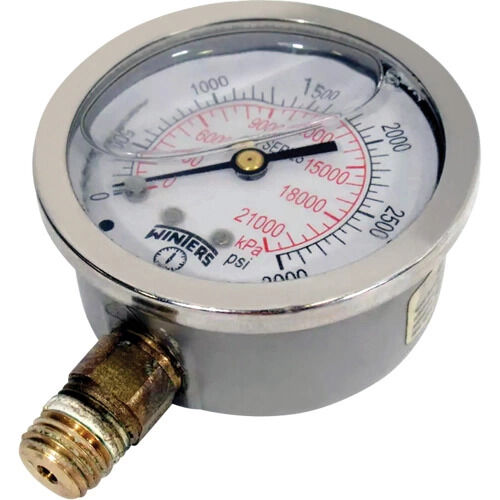

Winters Stainless Steel Pressure Gauge, 2-1/2"", 0 - 3000 psi, Bottom Mount, Liquid Filled Analogue (PFQ811)

Name: Winters Stainless Steel Pressure Gauge, 2-1/2"", 0 - 3000 psi, Bottom Mount, Liquid Filled Analogue (PFQ811)
Brand: Winters
SKU: ID088
Price: 77.89 CAD
Availability: InStock

SKU: ID088

Mfr. P/N: PFQ811

Your Price

$77.89

Availability: In Stock

This product ships within 2 - 4 weeks (Special Order)

Details

More Info

Returns

Details

Stainless Steel Pressure Gauge

Pulsation-resistant, stainless steel pressure gauge has 0/3,000 psi/kPa
Brass, lead-free brass or stainless steel internals
Crimp-on bezel
CRN registered
Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments

More Info

Manufacturer Part Number	PFQ811
Eco-Friendly	No
Brands	Winters
Select Case Size	Each
Pressure Range	0 - 3000 psi
Working Pressure	Maximum 75% of full-scale value
Dimensions	2-1/2""
Connection	Bottom Mount
Accuracy	±1.5% of full scale
Dial Diameter	2-1/2""
Dial Type	Liquid Filled Analogue
Lens	Polycarbonate
Ring	AISI 304 SS, crimp-on
Fill Liquid	Glycerin
Bourdon Tube	C-shaped for pressures up to and including 600 psi, spiral for pressures above 1,000 PSI
Ambient/Process Temperature	Dry: -40 to 200°F (-40 to 93°C), Glycerin filled: -4 to 150°F (-20 to 65°C)
Enclosure Rating	IP65

Returns

Standard return rules.
