Overview

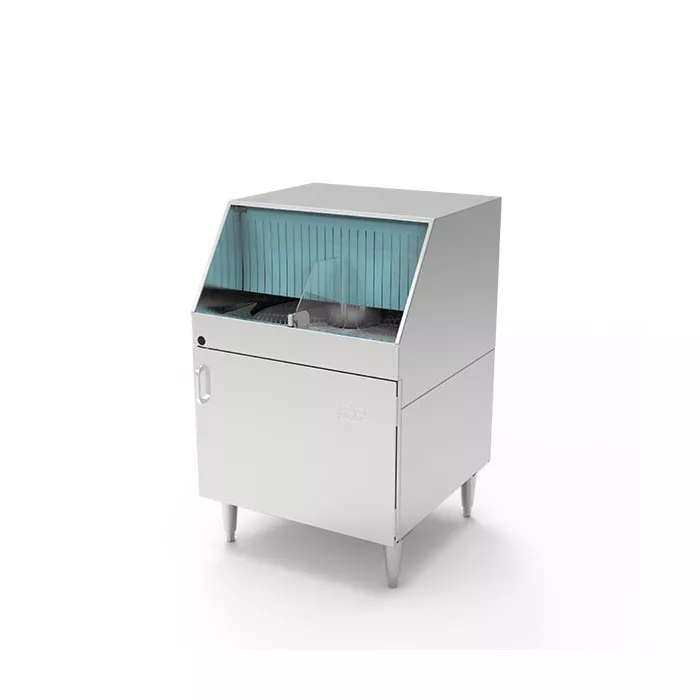

The Moyer Diebel DF Rotary Undercounter Glasswasher delivers reliable low-temperature chemical sanitizing, capable of cleaning approximately 1,200 glasses per hour (2½″ diameter). With its integrated waste drain tray, this model prevents drain clogs by capturing debris before it enters the drain system—ideal for high-use bar and restaurant glasswashing stations.
Specification
-
Capacity: ~1,200 glasses/hour rotary action for 2½″ glassware
-
Glass clearance: 12″ accommodates tall stemware
-
Temperature: low‑temp chemical sanitizing (~140 °F final rinse)
-
Drain: pumped drain with integrated waste drain tray and internal upper filter screen to guard against clogs
-
Chemical pumps: detergent, sanitizer and rinse-aid injection built in
-
Construction: stainless steel body, splash curtain, polypropylene conveyor to minimize glass breakage
-
Controls: automatic rinse chamber flush, self-flushing rinse cycle, auto-clean feature, diagnostics and temperature monitoring
-
Power: 208–230 V, 1-phase, 15 A typical; ETL/cETLus/NSF certified
-
Dimensions: ~25″ W × 27″ D × 39″ H; net weight ~156 lbs
Features
-
Waste drain tray included: prevents kitchen debris and ice from reaching the drain pump or plumbing, reducing downtime and maintenance
-
High throughput rotary action: up to 1,200 glasses/hour, with continuous glass turnover via conveyor belt
-
Internal upper drain screen: additional filtration before water enters the rinse chamber
-
Low-temp sanitizing: chemical-based final rinse ~140 °F, energy-efficient and NSF‑approved
-
Panther’s “Vari‑Cycle” feature: select multiple wash durations for flexibility in glassware types (per DF Specs)
-
Quiet, durable design: double‑walled insulated construction reduces noise; polypropylene conveyor minimizes chipping
-
Auto-clean and diagnostics: rinse chamber self-flushes at shutdown; built-in alerts and service diagnostics ease maintenance
Manufacturer Information
Moyer Diebel, part of the Ali Group and parented by Champion Industries, manufactures the DF series in the USA. The DF includes a 1‑year limited warranty on parts and labor and complies with NSF, ETL/cETLus safety standards. Its waste drain tray accessory is OEM-approved and included in this packaged model.
FAQ
What is the hourly cleaning capacity?
Approximately 1,200 glasses/hour for 2½″ diameter glassware via rotary conveyor.
Does the unit include a waste drain tray?
Yes — this DF model includes an integrated waste drain tray to trap debris before it reaches the drain system.
What sanitizing method does it use?
Low-temperature chemical sanitizing with about 140 °F final rinse temperature.
Is additional venting required?
No external vent hood is necessary. The unit is sealed and does not produce excessive steam.
What utilities are required?
Requires hot or cold water inlet (~140 °F min), standard electricity (208–230 V at 15 A), and drain hookup—but includes pumped drain and flexible hoses.
What is the warranty coverage?
Covered under manufacturer’s 1-year limited warranty on parts and labor.
