Details

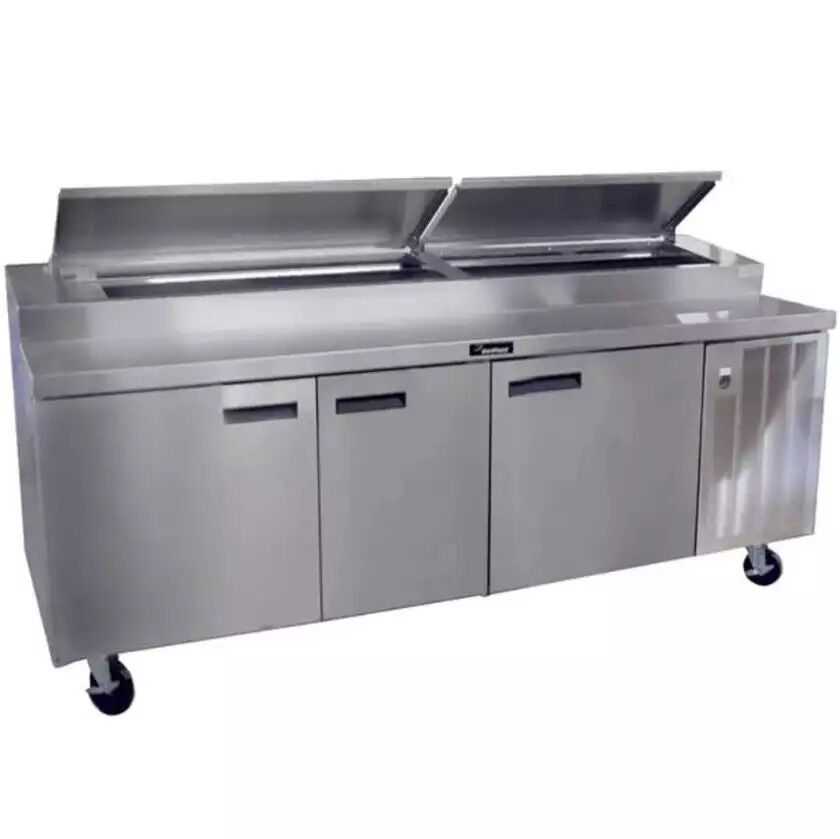

Exterior Top:
Constructed of one-piece 18-gauge stainless steel, with integral 2.12" (5cm) high square nosing at the front. The top has a mechanically cooled refrigerated raised rail at the rear with openings to accommodate pans (provided by others). The rail interior is 22-gauge stainless steel. Raised rail openings have 18-gauge stainless steel removable lids. The unit is equipped with a separate expansion valve and an on/off switch for the refrigerated rail. The temperature in top openings maintains 33°F (1°C) to 41°F (5°C) with pans recessed 2" at 86° F ambient room temperature, meeting NSF 7 requirements.
Exterior Back and Bottom:
24-gauge galvanized steel. The exterior ends are finished with stainless steel.
Base Interior:
Stainless steel back and bottom. The base interior sides and door frames are thermoformed ABS plastic. Each interior door section has (1) 25" (64cm) deep removable epoxy-coated wire shelf. Base is insulated with 2" (5cm) high-density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non-ODP (Ozone Depletion Potential), Non-GWP (Global Warming Potential) polyurethane. The end of the base has a machine compartment with condensing unit installed.
Door(s):
22-gauge stainless steel exterior front, with a thermoformed ABS plastic interior liner.
Refrigeration System:
R290 refrigerant, and maintains 36˚F (2˚C) to 40˚F (4˚C) interior cabinet temperature. The interior cabinet is cooled with mullion-style blower coils (coated) with expansion valves mounted between each door/drawer section for even air and temperature control.
Electronic temperature controls and a pre-wired condensing unit with hot gas condensate evaporator are installed in the machine compartment. Electronic control for base reads air temperature. Electronic control for rail displays the temperature for set point purposes only. The display does not reflect air or product temps in the unit. On/Off switches for the rail and base are located behind the louvered panel.
Electrical Connections:
115 volt, 60 Hertz, single phase. Unit is wired with 3-wire, grounded, maximum 8' (2.4m) cord and plug.
Casters: Equipment is mounted on 5" diameter casters; the overall height of casters is 6.13".
